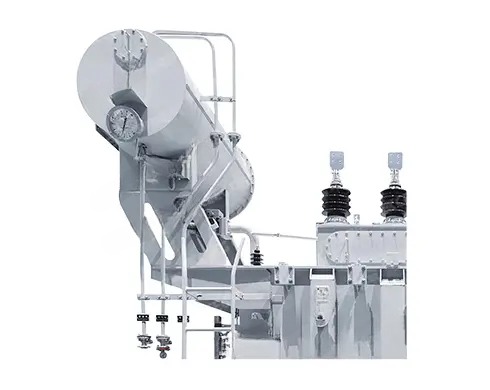

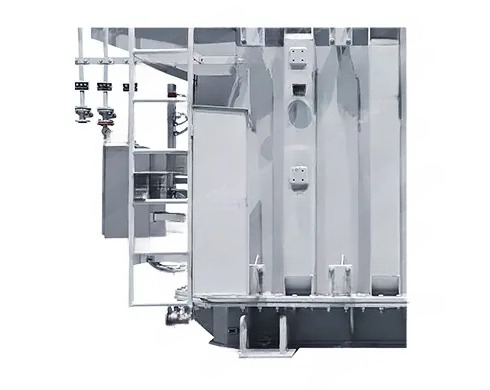

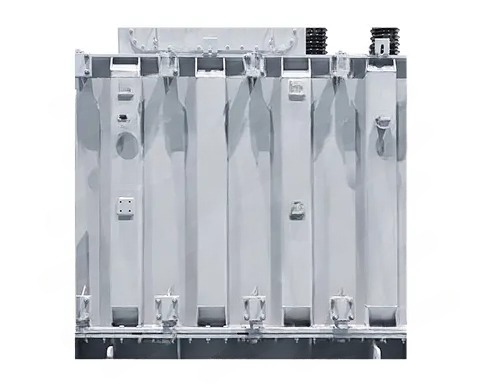

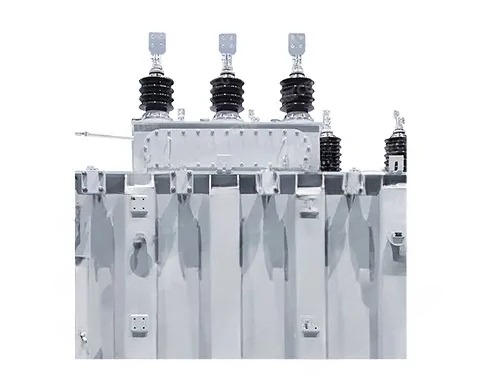

High-Temperature Resistant Oil-Immersed Transformer Below 35kV

I. Product Introduction

This product is a high-temperature resistant oil-immersed transformer below 35kV, an energy-efficient power equipment with the core advantages of high-temperature safety, leak-free performance, short-circuit resistance and low loss, specially designed for power transmission and distribution scenarios under complex working conditions. Relying on the energy-saving performance of low loss, reliable leak-free structure, stable short-circuit resistance performance and environmental adaptability of high-temperature safety, this transformer is widely used in urban power grids, industrial and mining enterprises, new energy supporting facilities and other fields, providing customers with safe, efficient and durable power conversion and transmission guarantees.

Note: The dimensions, weight, and other specifications provided above are for design and selection purposes only. Final specifications are subject to the product as shipped. Customization options for other models are available upon request.

II. Product Features

2.1 Low Loss

The iron core of the transformer is made of high-quality high-magnetic-conductivity cold-rolled silicon steel sheets with multi-stage fully mitered seam automatic lamination. The iron core binding adopts an integral pressing process, which effectively reduces the no-load loss and no-load current of the transformer and achieves an excellent low loss effect.

2.2 High-Temperature Safety

The transformer operates with absolute high-temperature safety in an ambient temperature exceeding 40℃ without any impact on its service life. It provides an excellent solution for ensuring safe power supply during peak load periods, and its high-temperature safety performance fully meets the operation requirements of high-temperature working conditions.

2.3 Leak-free

The oil tank and conservator of the transformer have passed positive and negative pressure leak tests, and the component installation adopts a flange groove structure, which fundamentally prevents oil leakage and realizes a lifelong leak-free operation of the equipment.

2.4 Short-circuit Resistance

The coil of the transformer is made of semi-hard copper wire, and the iron core clamping parts meet the safety requirements of the maximum short-circuit mechanical force; the winding adopts integral assembly and integral compression to ensure assembly accuracy, which greatly enhances the short-circuit resistance of the transformer and effectively resists short-circuit impact.

III. Manufacturing Process

3.1 Iron Core Manufacturing

Adopting high-magnetic-conductivity cold-rolled silicon steel sheets, the iron core is processed by automatic shearing, multi-stage fully mitered seam lamination and integral pressing to ensure uniform magnetic circuit and the lowest loss, which is the core process to realize the low loss of the transformer.

3.2 Coil Manufacturing

The coil is wound with semi-hard copper wire and processed by integral assembly technology, followed by vacuum drying and vacuum oil injection treatment to ensure stable insulation performance, which provides a solid structural support for the short-circuit resistance and high-temperature safety of the transformer.

3.3 Oil Tank Manufacturing

The steel plate is welded and formed, then sandblasted for derusting and anti-corrosion coating, and has passed positive/negative pressure leak tests. The sealing structure adopts flange groove parts, which completely eliminates the risk of oil leakage and realizes the whole-life leak-free performance of the oil tank.

3.4 Final Assembly and Testing

After integral assembly, the transformer undergoes factory tests including no-load test (verifying low loss), load test (verifying low loss), withstand voltage test (verifying high-temperature safety), short-circuit test (verifying short-circuit resistance) and sealing test (verifying leak-free performance), ensuring that all product performance meets the standard requirements.

IV. Company Introduction

Shenyang Tiantong Power Equipment Co., Ltd. is a high-tech enterprise specialized in the R&D, production and sales of power equipment, mainly engaged in transformers, high and low voltage switchgear, wind power and photovoltaic supporting power equipment and other products. With the core goal of creating safe and stable high-quality power equipment, the company has been deeply engaged in the power equipment field for more than 30 years, with a complete R&D system and manufacturing capacity, providing reliable power solutions for customers worldwide.

V. Honors and Qualifications

1. The company has obtained ISO9001 Quality Management System Certification and ISO14001 Environmental Management System Certification.

2. The transformer products comply with the national standards of GB/T 1094 series and relevant industry standards, and the core performances such as low loss, short-circuit resistance, leak-free and high-temperature safety have all passed authoritative testing.

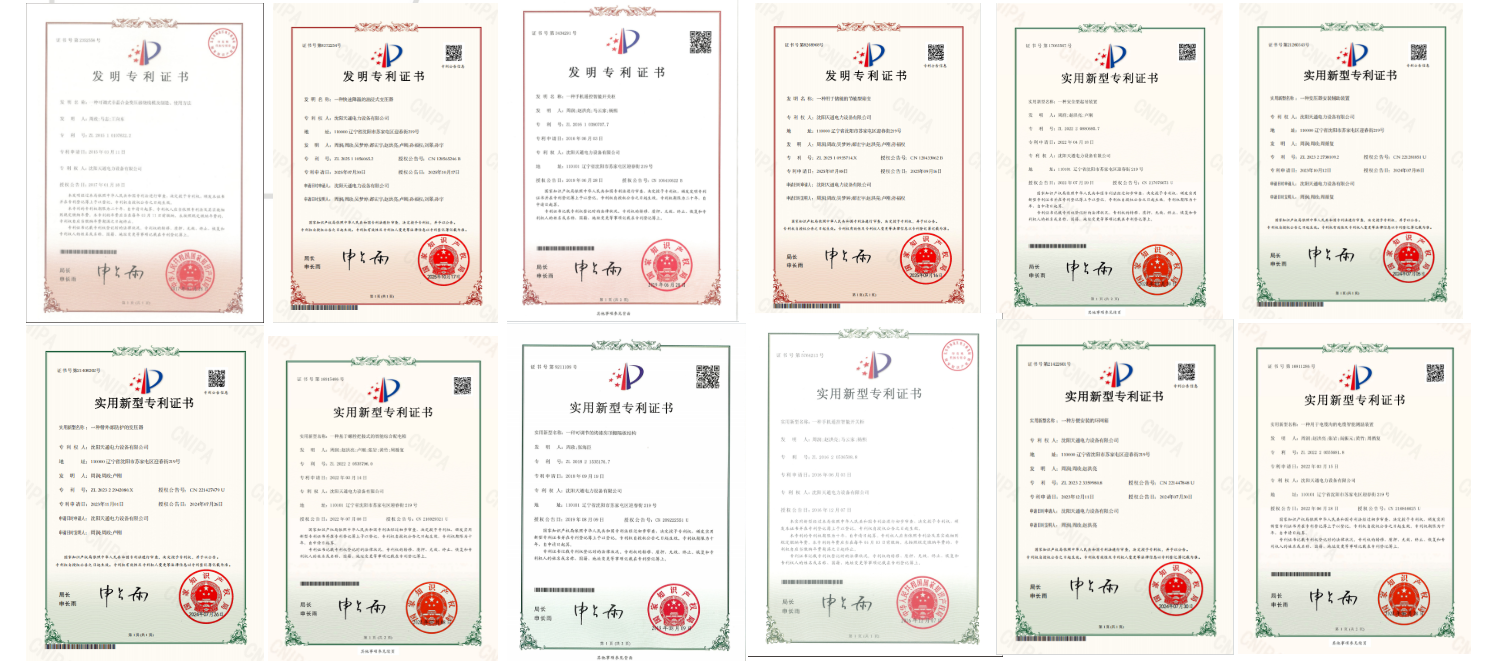

3. The company has a number of utility model patents and invention patents covering core technologies such as low loss iron core, leak-free sealing, short-circuit resistance winding and high-temperature safety insulation.

4. The company has been awarded the honorary title of High-tech Enterprise.

VI. Production Strength

1. The company has standardized production workshops and advanced manufacturing equipment, including coil winding production lines (ensuring short-circuit resistance), vacuum oil injection equipment (ensuring high-temperature safety and leak-free performance) and other professional equipment for transformer production.

2. It can meet the needs of bulk orders and customized production, and stably output high-quality transformer products with the characteristics of low loss, leak-free, short-circuit resistance and high-temperature safety.

3. A complete quality control system has been established, with full-process testing from raw material incoming inspection to finished product delivery. The core indicators such as low loss, leak-free, short-circuit resistance and high-temperature safety are strictly controlled to ensure the consistency and reliability of transformer products.

VII. Services and After-sales Support

7.1 Pre-sales Service

Provide professional technical consulting services, customize transformer selection schemes with low loss, leak-free, short-circuit resistance and high-temperature safety according to customer scenarios, and free of charge provide technical drawings and parameter optimization suggestions.

7.2 In-sales Service

Follow up the production progress throughout the whole process, timely feed back the product manufacturing status, cooperate with customers to complete factory acceptance, logistics and distribution, and ensure that each transformer fully meets the customer's requirements for low loss, leak-free, short-circuit resistance and high-temperature safety.

7.3 After-sales Service

Provide efficient and thoughtful after-sales support, establish a perfect after-sales service system, and ensure the stable operation of the transformer with high-temperature safety, leak-free, short-circuit resistance and low loss performance during the whole service life.
