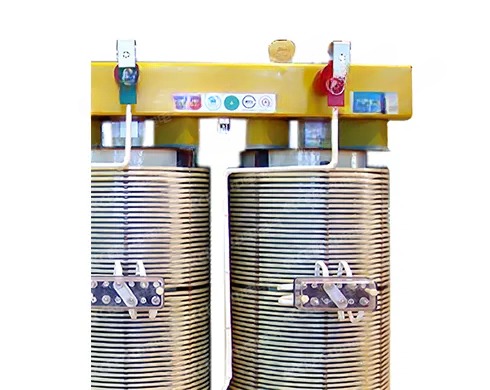

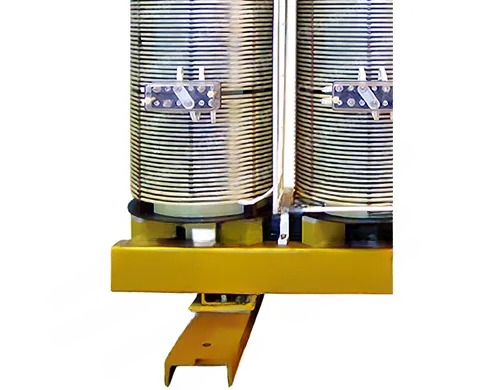

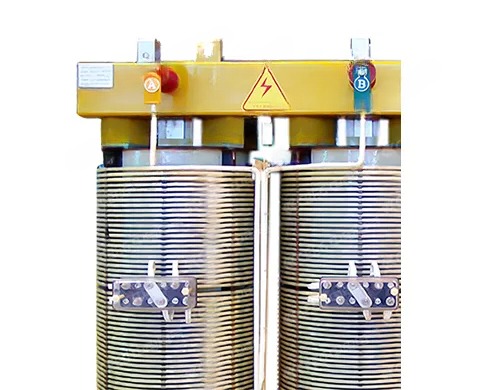

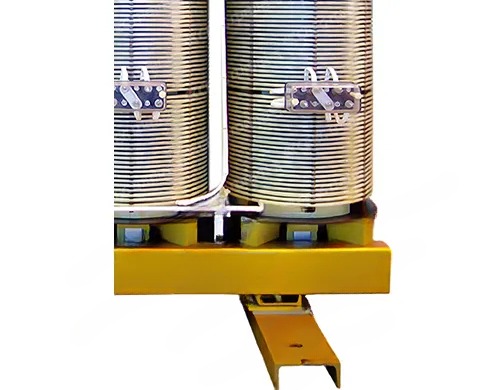

I.Product Introduction
The SG(B) series non-encapsulated H-class dry-type transformer is a high-temperature resistant and high-reliability dry-type power equipment, specially designed for distribution and industrial scenarios with high temperature, high load and harsh environment. Adopting non-encapsulated H-class insulation material and open-type structure, it features ultra-high temperature resistance, low loss, anti-aging and strong heat dissipation, adapting to heavy industry fields such as metallurgy, petrochemical, cement and steel and high-temperature operation scenarios, and is the core dry-type transformer equipment to ensure the stable operation of the power system under harsh working conditions.
II.Technical Specifications
Note: The dimensions, weight, and other specifications provided above are for design and selection purposes only. Final specifications are subject to the product as shipped. Customization options for other models are available upon request.
10 kV SG(B)10 Dry-Type Transformer
Rated Voltage: 10 kV, 6 kV
Connection Group: Dyn11 or Yyn0
Rated Low Voltage: 0.4 kV
Tap Range: ±2×2.5%, ±5%
| Product Model | UK% | No-load Loss P0(W) | Load Loss (145℃)Pk(W) | I0(%) | LPA(AN)dB | L×B×H(mm) | Installation Dimensions m×n(mm) | Weight（kg） | Dimensions of the top cable outlet housing (including feet) | Dimensions of the side-entry cable housing (including feet) | Housing weight (kg) |
| SGB10-100 | 4 | 400 | 1370 | 1.8 | 43 | 1215×860×1050 | 660×660 | 675 | 1700×1200×1660 | 1700×1200×2200 | 260 |
| SGB10-125 | 4 | 470 | 1610 | 1.6 | 43 | 1215×860×1060 | 660×660 | 720 | 1700×1200×1660 | 1700×1200×2200 | 260 |
| SGB10-160 | 4 | 540 | 1850 | 1.6 | 44 | 1260×860×1130 | 660×660 | 890 | 1700×1200×1660 | 1700×1200×2200 | 260 |
| SGB10-200 | 4 | 620 | 2200 | 1.4 | 44 | 1260×860×1105 | 660×660 | 920 | 1700×1200×1660 | 1700×1200×2200 | 260 |
| SCB10-250 | 4 | 720 | 2400 | 14 | 46 | 1260×860×1130 | 660×660 | 1050 | 1700×1200×1660 | 1700×1200×2200 | 260 |
| SGB10-315 | 4 | 880 | 3730 | 1 | 47 | 1390×860×1155 | 660×660 | 1410 | 1900×1300×1660 | 1900×1300×2200 | 260 |
| SGB10-400 | 4 | 980 | 4280 | 1 | 48 | 1390×860×1375 | 820×660 | 1565 | 1900×1300×1660 | 1900×1300×2200 | 260 |
| SGB10-500 | 4 | 1160 | 5230 | 1 | 49 | 1390×860×1390 | 820×660 | 1680 | 1900×1300×1660 | 1900×1300×2200 | 260 |
| SGB10-630 | 4 | 1340 | 6290 | 0.85 | 51 | 1475×1020×1375 | 820×660 | 1800 | 2100×1400×2015 | 2100×1400×2200 | 320 |
| SGB10-630 | 6 | 1300 | 6400 | 0.85 | 51 | 1475×1020×1375 | 820×660 | 1800 | 2100×1400×2015 | 2100×1400×2200 | 320 |
| SGB10-800 | 6 | 1520 | 7460 | 0.85 | 52 | 1480×1020×1410 | 820×820 | 1930 | 2100×1400×2015 | 2100×1400×2200 | 320 |
| SGB10-100 | 6 | 1770 | 8760 | 0.85 | 52 | 1610×1020×1435 | 820×820 | 2355 | 2100×1400×2015 | 2100×1400×2200 | 320 |
| SGB10-1250 | 6 | 2090 | 10300 | 0.85 | 53 | 1610×1020×1680 | 820×820 | 2940 | 2300×1500×2120 | 2300×1500×2200 | 360 |
| SGB10-1600 | 6 | 2450 | 12500 | 0.85 | 54 | 1790×1150×1730 | 1070×1070 | 3540 | 2300×1500×2120 | 2300×1500×2200 | 400 |
| SGB10-200 | 6 | 3050 | 15500 | 0.7 | 54 | 1790×1150×1760 | 1070×1070 | 4050 | 2400×1500×2300 | 2400×1500×2300 | 400 |
| SGB10-2500 | 6 | 3600 | 18400 | 0.7 | 55 | 1900×1150×1895 | 1070×1070 | 4790 | 2600×1500×2500 | 2600×1500×2500 | 400 |
| SGB10-3150 | 8 | 4030 | 19220 | 0.7 | 57 | 2100×1150×1960 | 1070×1070 | 6215 | 2600×1500×2500 | 2600×1500×2500 | 400 |
III.Product Features
1. Ultra-High Temperature Resistance and Anti-Aging: The core adopts H-class insulation material (heat resistance temperature up to 180℃), the non-encapsulated open-type structure has excellent heat dissipation performance, can operate stably for a long time under high-temperature working conditions above 120℃, the insulation material has strong anti-aging ability, effectively prolonging the service life of the equipment, adapting to high-temperature operation scenarios such as metallurgy and petrochemical.
2. Low Loss and High Energy Efficiency: Optimizing the core magnetic circuit design, adopting high-permeability grain-oriented silicon steel sheets, combined with H-class special electromagnetic wires, greatly reducing no-load loss and load loss, and can maintain high efficiency even under high-load working conditions, helping the heavy industry field reduce production energy consumption and achieve energy saving and efficiency increase.
3. Open-Type and Strong Heat Dissipation: Adopting non-encapsulated open-type structure, the core and coil are directly in contact with air, with large heat dissipation area and high heat dissipation efficiency, no additional forced cooling equipment is needed, it can adapt to the operating conditions of high load and large temperature rise, and effectively avoid equipment failures caused by overheating.
4. Impact Resistance and Strong Stability: Aiming at the high-load and strong-impact power consumption characteristics of the heavy industry field, the mechanical structure and winding fixing method of the equipment are optimized, the dynamic and thermal stability and short-circuit resistance are improved, which can resist voltage fluctuations and large current impacts in the power grid, and ensure the long-term stable operation of the equipment under harsh working conditions.
5. Easy Maintenance and Repairable: The non-encapsulated open-type structure makes the core components such as core and coil unobstructed, which is convenient for operation and maintenance personnel to observe the equipment operating status in real time. At the same time, the winding and insulation components of the equipment can be repaired and maintained on site, greatly reducing the fault handling cost and improving the availability of the equipment.
6. Moisture and Corrosion Resistance, Wide Adaptability: H-class insulation materials have good moisture, mildew and corrosion resistance, the coil surface is treated with special insulation coating, which can adapt to the dusty and corrosive gas environment of metallurgy, petrochemical and other scenarios, and also adapt to various installation scenarios such as outdoor, indoor and high-temperature workshops.
IV.Product Application
The SG(B) series non-encapsulated H-class dry-type transformer is widely used in high-temperature workshops and distribution systems of heavy industry fields such as metallurgy, petrochemical, cement and steel; it is also suitable for harsh working condition scenarios such as power stations, mines, ships and chemical industry, as well as fields such as high-temperature distribution areas of new energy power stations and supporting power supply of industrial kilns, serving as the core power conversion equipment under high temperature, high load and harsh environment, and is the preferred dry-type transformer product for heavy industry and special industrial scenarios.
The company has obtained the ISO9001 Quality Management System Certification and ISO14001 Environmental Management System Certification. The products have passed the national mandatory 3C Certification and optional CE Certification, and the company holds a number of utility model patents and appearance design patents.

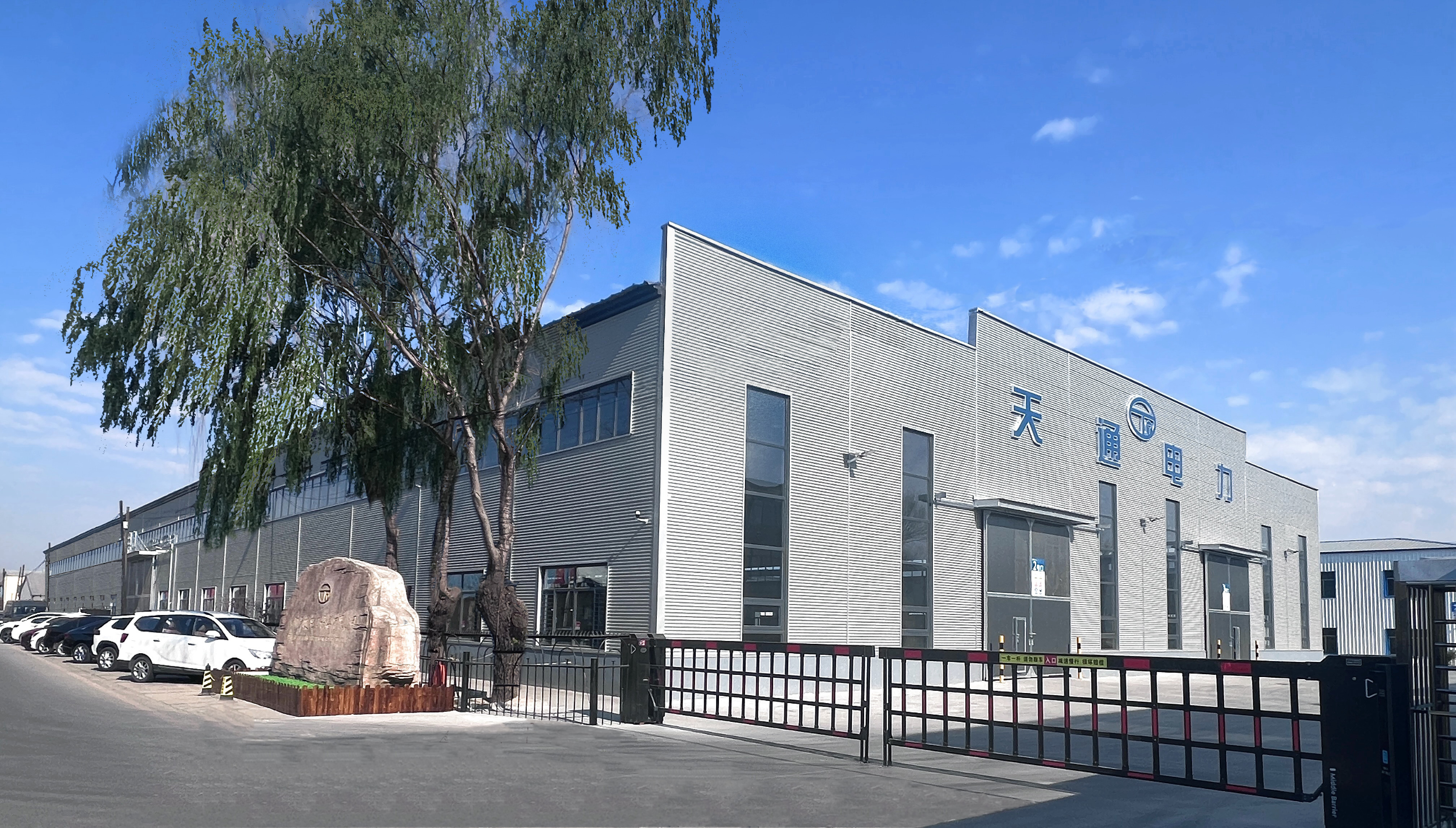

The company operates a modern, standard production facility covering an area of 200 mu (approximately 135,000 square meters), with a building area of 135,000 square meters. Equipped with intelligent production facilities, assembly lines, and testing equipment, the company has established a comprehensive quality control system covering the entire process from raw material procurement and manufacturing to finished product testing. It has evolved from single-product manufacturing to a professional model offering one-stop services encompassing R&D, production, and design implementation. Every stage adheres to high standards and strict requirements to ensure stable and reliable product quality. The product portfolio includes power transformers (oil-immersed and dry-type), high- and low-voltage switchgear, prefabricated substations, transformer accessories, ring main units, and distribution panels. Our products combine stability, practicality, and innovation. All products undergo rigorous testing and comply with industry standards and relevant international specifications.

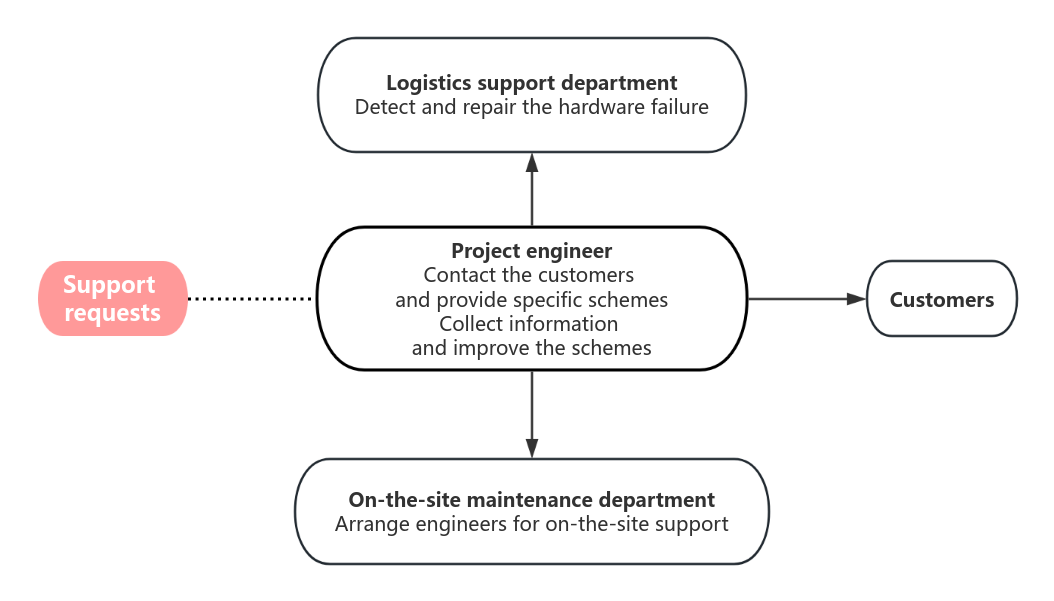

Provide free technical consultation, scheme design and type selection guidance
