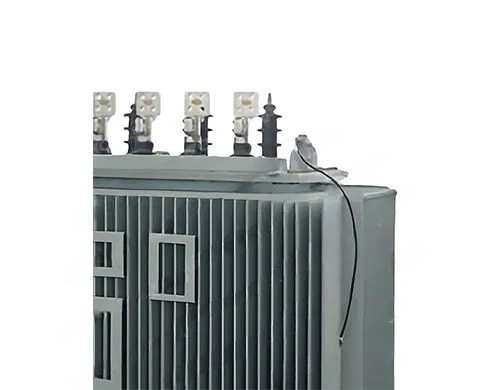

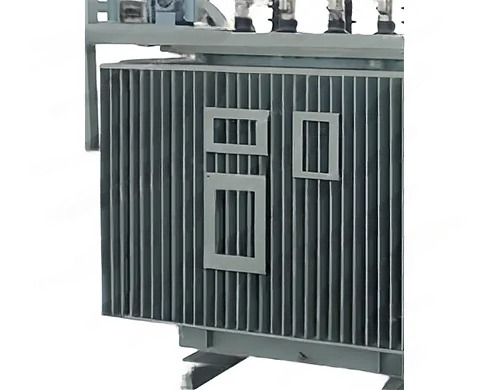

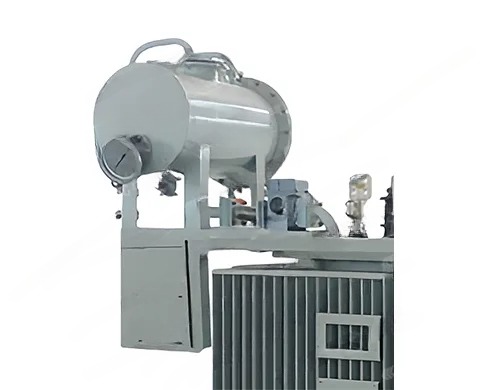

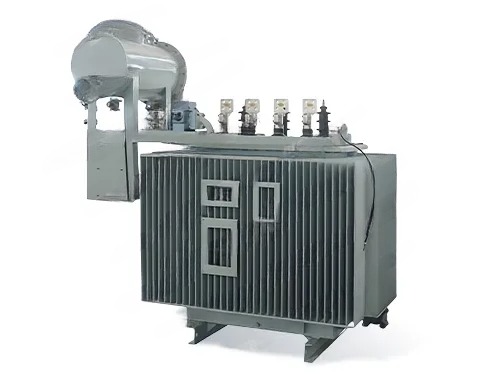

The S11-M-30–3150/10 Series Three-Phase, Double-Winding, Oil-Immersed, No-Load Tap-Changing Distribution Transformers is a high-performance power distribution device designed for industrial, commercial and civil power supply systems. As a high-quality oil immersed distribution transformer, it integrates advanced technology, reliable structure and green environmental protection, providing stable and efficient power support for various power distribution scenarios, and becoming the preferred equipment in the field of power transmission and distribution.
The iron cores in this series of oil-immersed, energy-saving transformers are manufactured using high-quality cold-rolled grain-oriented silicon steel sheets and feature a full-mitered lap joint stacking process. Furthermore, the transformer windings are constructed from high-purity oxygen-free copper; this material choice—combined with a rational structural design and superior conductivity—significantly enhances overall energy utilization efficiency.
Operational stability is a core advantage of this transformer series. These eco-friendly transformers feature a fully sealed structural design that completely isolates internal components from the external atmosphere, thereby effectively preventing the deterioration of transformer oil and the aging of insulation materials. Specifically, the high-voltage windings utilize a multi-layer cylindrical structure, while the low-voltage windings—depending on capacity—employ either a cylindrical or helical structure. This design endows the transformer with exceptional mechanical strength and robust resistance to short-circuit forces. Additionally, the energy efficient distribution transformers are equipped with an off-circuit tap changer, allowing for flexible voltage adjustment based on actual operational requirements. This feature further guarantees power supply stability and ensures long-term, reliable operation with minimal maintenance requirements.
While prioritizing high efficiency and stability, this series of oil-immersed, energy-efficient distribution transformers also places a strong emphasis on environmental protection. The transformers utilize an eco-friendly insulating oil characterized by excellent biodegradability, non-toxicity, and minimal environmental impact. The product's exterior surfaces undergo degreasing, rust removal, and phosphating treatments, followed by the application of an eco-friendly anti-corrosive coating to ensure superior corrosion resistance and long-term durability. Furthermore, the hermetically sealed oil filled transformer incorporates a low-noise design, effectively mitigating noise pollution generated during operation and creating a quiet, environmentally friendly working environment for users.
|
Rated Capacity (KVA) |
Voltage Combination |
Conn-ection Label |
No- Load Loss (W) |
Load Loss- es (W) |
Short Circuit Impe- dance (%) |
No- Load Current (A) |
Lpa Noise Level (dB |
Weight | Overall Dimension |
Rail Cauge (mm) |
||||
|
H.V. (KV) |
High Voltage Tap Range (%) |
L.V. (KV) |
Core | Oil | Total | L×W×H | ||||||||
| 30 |
6 6.3 10 10.5 11 |
±5% | 0.4 |
Yyn0 or Dyn11 |
100 | 630/600 |
4 |
2.3 | 42 | 140 | 80 | 260 | 725×460×900 | 350x400 |
| 50 | 130 | 910/870 | 2.0 | 42 | 201 | 100 | 400 | 780×570×930 | 400x450 | |||||
| 63 | 150 | 1090/1040 | 1.9 | 42 | 230 | 110 | 460 | 790×560×950 | 400x500 | |||||
| 80 | 180 | 1310/1250 | 1.9 | 42 | 260 | 120 | 500 |
810×650×970 |
400x500 | |||||
| 100 | 200 | 1580/1500 | 1.8 | 42 | 310 | 130 | 570 | 845×710×1010 | 400x500 | |||||
| 125 | 240 | 1890/1800 | 1.7 | 42 | 365 | 145 | 660 | 860×670×1080 | 400x500 | |||||
| 160 | 280 | 2310/2200 | 1.6 | 43 | 430 | 140 | 730 | 895×820×1070 | 400x500 | |||||
| 200 | 340 | 2730/2600 | 1.5 | 44 | 510 | 180 | 960 | 930×890×1130 | 450x600 | |||||
| 250 | 400 | 3200/3050 | 1.4 | 44 | 585 | 200 | 1010 | 955×930×1155 | 450x600 | |||||
| 315 | 480 | 3830/3650 | 1.4 | 44 | 658 | 240 | 1250 | 980×970×1150 | 500x700 | |||||
| 400 | 570 | 4520/4300 | 1.3 | 44 | 822 | 247 | 1380 | 1055×1060×1220 | 550x550 | |||||
| 500 | 680 | 5410/5150 | 1.2 | 48 | 950 | 285 | 1640 | 1420×970×1220 | 550x800 | |||||
| 630 | 810 | 6200 |
4.5 |
1.1 | 48 | 1100 | 330 | 1890 | 1480×990×1310 | 600x800 | ||||
| 800 | 980 | 7500 | 1.0 | 50 | 1350 | 390 | 2300 | 1635×1115×1440 | 660x950 | |||||
| 1000 | 1150 | 10300 | 1.0 | 50 | 1465 | 445 | 2620 | 1715×1180×1470 | 610x950 | |||||
| 1250 | 1360 | 12000 | 0.9 | 51 | 1715 | 525 | 3150 | 1750×1190×1500 | 750x950 | |||||
| 1600 | 1640 | 14500 | 0.8 | 51 | 2090 | 570 | 3670 | 1880×1320×1530 | 750x950 | |||||
| 2000 | 2020 | 17820 |
5.5 |
0.8 | 53 | 2545 | 770 | 4250 | 1930×1320×1640 | 800x1050 | ||||
| 2500 | 2380 | 20700 | 0.8 | 55 | 3200 | 970 | 4850 | 2060×1150×1850 | 1070x1070 | |||||
| 3150 | 2810 | 24300 | 0.7 | 57 | 3550 | 1230 | 5680 | 2250×1200×2060 | 1070x1070 | |||||
High-speed Railway Station
At the end of December 2020, Xiong'an Station on the Beijing-Xiong'an Intercity Railway will officially open; it is the largest high-speed railway station in Asia.
Chang'an Avenue Lighting

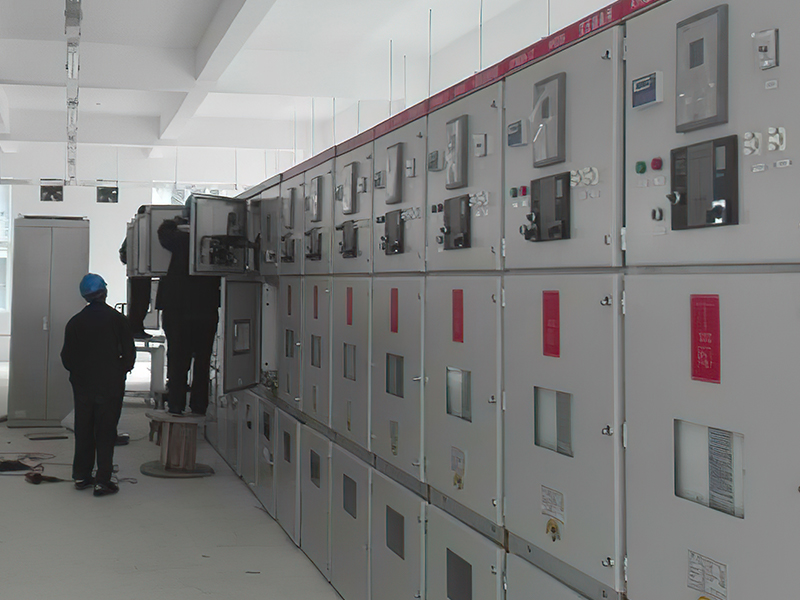

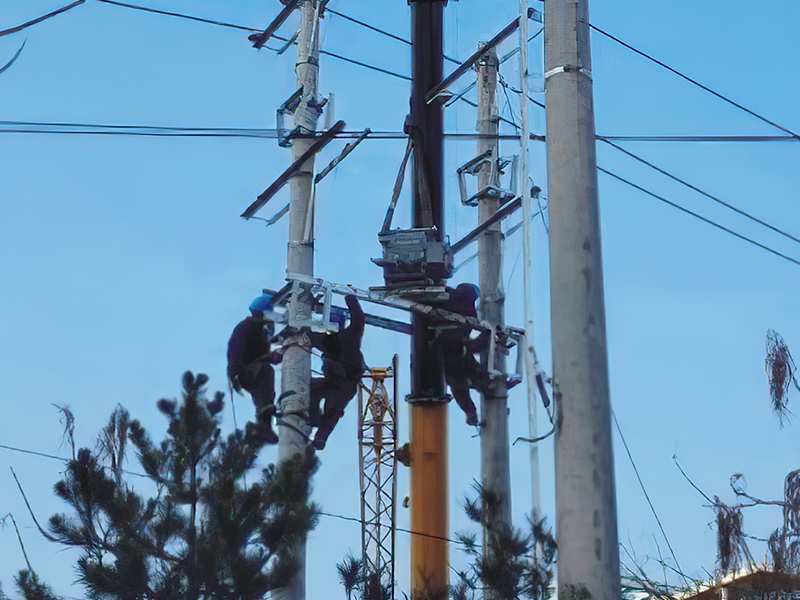

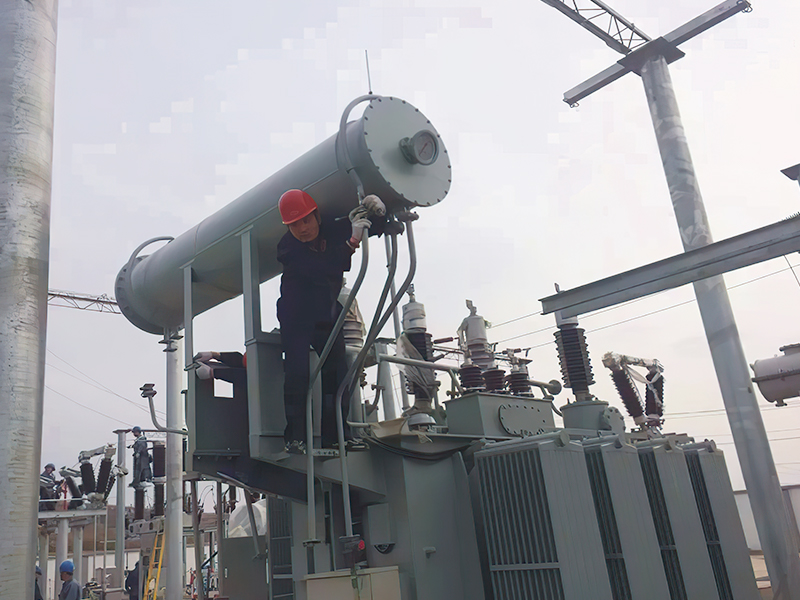

Tiantong Enterprise possesses the capability to install power transmission and transformation equipment and maintains a service system backed by proprietary intellectual property. The company provides installation, operation, commissioning, and maintenance services for complete sets of power equipment and their associated accessories, demonstrating strong competitiveness within the fields of power installation and maintenance.
Our products can be widely used in industrial and mining enterprises, residential communities, commercial plazas, power grids and other fields to meet the power distribution needs of different scenarios. It complies with international and national relevant standards such as IEC and ISO 9001, and has passed strict quality inspection before leaving the factory, ensuring product quality and safety performance.
Tiantong Enterprise was established in 1993 and is headquartered in the Sujiatun District of Shenyang City, covering an area of 135,000 square meters. The company possesses three production bases, fixed assets exceeding 300 million RMB, and over 100 pieces of specialized production equipment, demonstrating substantial strength. Exports account for 20% of its annual sales, with products shipped to numerous countries, including Saudi Arabia, Iraq, Kazakhstan, Uzbekistan, Russia, Indonesia, Vietnam, and Nigeria.
Tiantong Industrial Oil-Immersed Transformers have been selected by numerous leading enterprises in China, including State Grid, PetroChina, Sinopec, Sinohydro, Wanda Group, Vanke, China Resources Land, and Poly Developments. These partnerships reflect our proven product reliability, strict quality standards, and ability to support demanding power distribution projects across utility, industrial, commercial, and infrastructure sectors.
Every Tiantong transformer undergoes strict quality inspections throughout production, from silicon steel core verification and winding assembly to tank fabrication and final testing. Before shipment, each unit is tested for insulation resistance, turns ratio, winding resistance, no-load loss, load loss, impedance voltage, and dielectric withstand performance. Oil quality, sealing integrity, and protection device operation are also verified to ensure safe, reliable, and long-term operation in demanding power distribution applications.

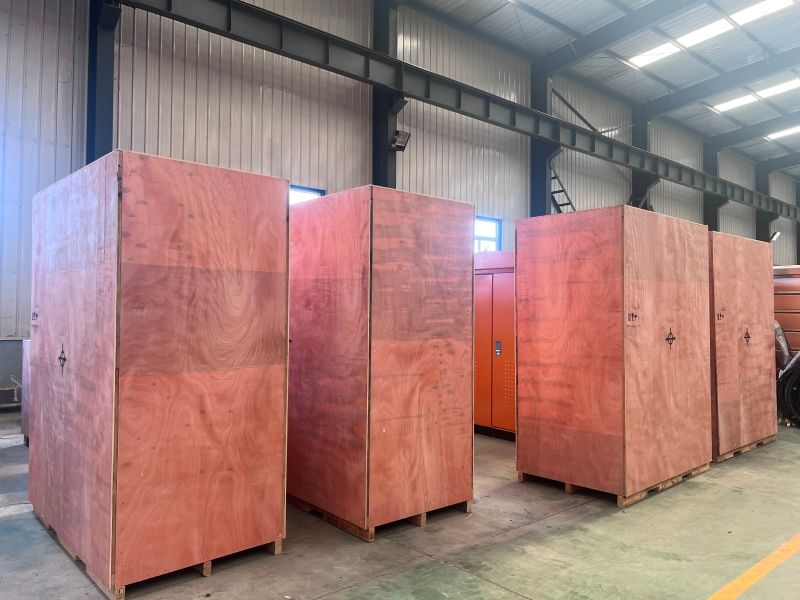

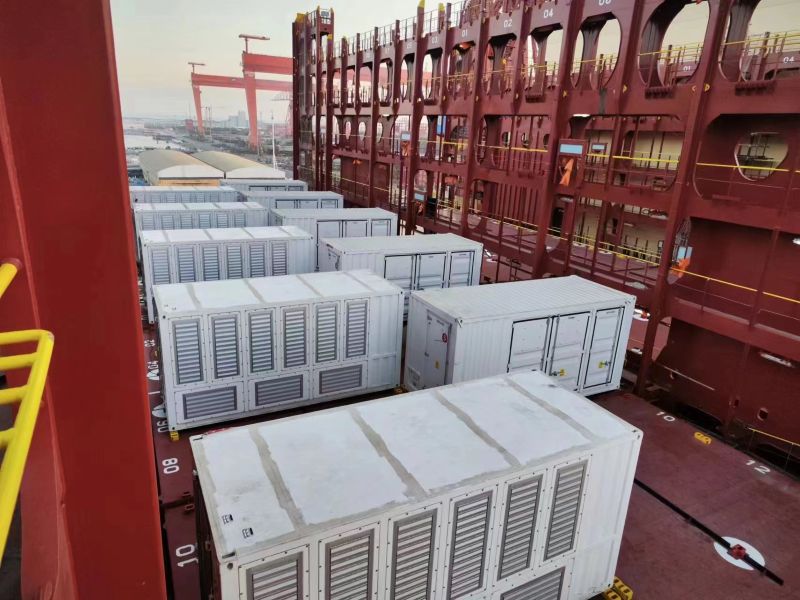

To ensure the safe arrival of the 35kV oil-immersed transformer at the project site, a specialized export packaging scheme is employed; critical components—such as bushings, radiators, and control devices—undergo treatments to protect against shock, moisture, and corrosion. Transport may be conducted with the unit either oil-filled or under nitrogen protection, and the equipment is secured to a robust steel base fitted with rigid support structures.
We facilitate sea, land, and multimodal transport, offering logistics services under FOB, CIF, and Door-to-Door terms. Furthermore, we provide assistance with export documentation, transport insurance, customs clearance procedures, and on-site installation guidance.
Tiantong provides comprehensive technical support before, during, and after delivery. Dedicated project engineers serve as a single point of contact, ensuring fast communication and efficient problem resolution. Our technical team can provide remote assistance, troubleshooting, maintenance guidance, and on-site engineering support when required, helping customers maximize equipment reliability and operational efficiency throughout the service life of the transformer.
