The S13-M-30-2000/10 fully sealed, oil-immersed transformer is designed for use in power systems operating at an AC frequency of 50 Hz and a rated working voltage of 10 kV or below. It serves as a distribution transformer for enterprises in sectors such as petroleum, metallurgy, chemicals, textiles, and light industry, as well as for locations characterized by high dust levels.
Installation Altitude: Not exceeding 1000m above sea level;
Ambient Temperature: -40°C to +40°C.
|
Rated Capacity (KVA) |
Voltage Combination |
Conn-ection Label |
No- Load Loss (W) |
Load Loss- es (W) |
Short Circuit Impe- dance (%) |
No- Load Current (A) |
Lpa Noise Level (dB |
Weight | Overall Dimension |
Rail Cauge (mm) |
||||
|
H.V. (KV) |
High Voltage Tap Range (%) |
L.V. (KV) |
Core | Oil | Total | L×W×H | ||||||||
| 30 |
6 6.3 10 10.5 11 |
±5% | 0.4 |
Yyn0 or Dyn11 |
80 | 630/600 |
4 |
0.7 | 42 | 130 | 55 | 245 | 710×470×815 | 400x400 |
| 50 | 100 | 910/870 | 0.6 | 42 | 200 | 85 | 380 | 770×520×910 | 400x400 | |||||
| 63 | 110 | 1090/1040 | 0.6 | 42 | 235 | 85 | 420 | 800×570×930 | 400x400 | |||||
| 80 | 130 | 1310/1250 | 0.55 | 42 | 280 | 85 | 480 | 800×590×930 | 400x450 | |||||
| 100 | 150 | 1580/1500 | 0.5 | 42 | 325 | 110 | 565 | 830×640×990 | 400x450 | |||||
| 125 | 170 | 1890/1800 | 0.45 | 42 | 395 | 115 | 650 | 870×670×1040 | 400x450 | |||||
| 160 | 200 | 2310/2200 | 0.4 | 43 | 470 | 140 | 780 | 880×720×1040 | 550x550 | |||||
| 200 | 240 | 2730/2600 | 0.4 | 44 | 530 | 145 | 840 | 920×840×1110 | 550x550 | |||||
| 250 | 290 | 3200/3050 | 0.35 | 44 | 620 | 155 | 955 | 950×840×1120 | 550x550 | |||||
| 315 | 340 | 3830/3650 | 0.35 | 44 | 740 | 195 | 1190 | 980×930×1210 | 660x650 | |||||
| 400 | 410 | 4520/4300 | 0.3 | 44 | 895 | 190 | 1340 | 1200×770×1210 | 550x700 | |||||
| 500 | 480 | 5410/5150 | 0.3 | 48 | 1120 | 290 | 1760 | 1290×840×1380 | 600x800 | |||||
| 630 | 570 | 6200 |
4.5 |
0.3 | 48 | 1290 | 325 | 2010 | 1390×910×1420 | 600x800 | ||||
| 800 | 700 | 7500 | 0.25 | 50 | 1520 | 325 | 2260 | 1470×960×1385 | 660x850 | |||||
| 1000 | 830 | 10300 | 0.2 | 50 | 1510 | 345 | 2370 | 1650×1120×1390 | 660x950 | |||||
| 1250 | 970 | 12000 | 0.2 | 51 | 1980 | 420 | 3010 | 1640×1070×1570 | 750x950 | |||||
| 1600 | 1170 | 14500 | 0.2 | 51 | 2260 | 500 | 3470 | 1790×1220×1590 | 750x950 | |||||
| 2000 | 1550 | 17820 |
5 |
0.2 | 53 | 2780 | 600 | 4250 | 1910×1250×1610 | 820x1050 | ||||
The core is constructed using high-permeability, grain-oriented, cold-rolled silicon steel sheets. It features a novel design—a fully mitered, stacked-laminate structure—in which the core limbs have a multi-step circular cross-section, and the core yokes share the same cross-sectional dimensions as the limbs.
The windings utilize corrugated oil ducts and a varnish-free process, secured by compression banding. All windings are of the concentric coil type. The high-voltage windings feature taps corresponding to specific voltage requirements; these taps are routed to a tap changer switch mounted on the tank cover. Tap voltage adjustments can only be performed after the power supply has been disconnected.
Oil-immersed transformers ranging from 30 to 2000 kVA are equipped with a pressure relief valve. Upon user request, a gas relay (Buchholz relay) featuring alarm and trip contacts can also be installed.
All three-phase oil-immersed distribution transformers are fitted with a mounting boss for a glass thermometer. This boss is located on the top of the oil tank, with the thermometer bulb extending 120 ± 10 mm into the oil. Transformers rated between 1000 and 2000 kVA are additionally equipped with an outdoor-type signal thermometer.
The tank for the S13-M fully sealed oil-immersed transformer is constructed with corrugated walls. The exterior surface undergoes a powder coating process, resulting in a durable and robust paint film.
The corrugated cooling fins serve a dual purpose: providing cooling functionality while also acting as a "breathing" mechanism. The inherent elasticity of the corrugated fins compensates for changes in the transformer oil's volume caused by temperature fluctuations. Consequently, this fully sealed transformer design eliminates the need for an external oil conservator (expansion tank), thereby reducing the unit's overall height.
During the sealing process, the distribution transformer undergoes a vacuum oil-filling procedure, which completely eliminates moisture from within the unit and ensures that the transformer oil remains isolated from atmospheric air. This effectively prevents the ingress of oxygen and moisture—factors that could otherwise degrade the transformer's insulation performance and accelerate the aging of the transformer oil—thereby eliminating the need for periodic oil sampling and testing.

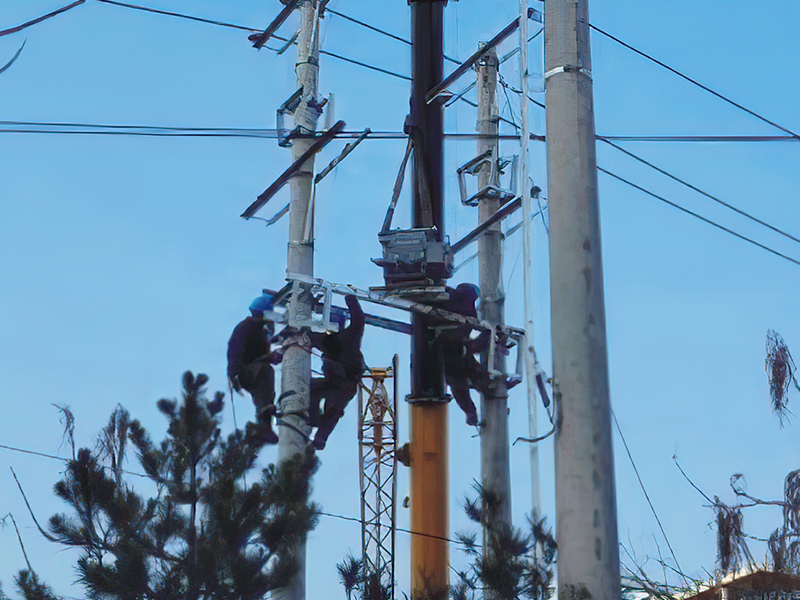

This series is designed for 10kV power distribution systems and widely used in:
Urban & rural power grids, residential quarters, commercial centers
Industrial & mining enterprises, factories, infrastructure projects
High-rise buildings, airports, railway stations, tunnels, ports
Harsh environments such as dust, humidity, and flammable & explosive sites
It provides a stable, efficient, and safe power supply for public utilities, industrial production, and civil power.
Professional production lines for oil-immersed transformers with strict quality control.
Mature stamping, winding, assembling, and vacuum oil-filling technology.
Strict testing: routine test, type test, withstand voltage, load loss, and no-load test.
Certifications: ISO 9001, ISO 14001, CCC, etc.
Strong capacity to support mass orders & customized projects.
Nanjing South Railway Station
As a critical control project within the Beijing–Shanghai High-Speed Railway—a strategic national priority—Nanjing South Station exerts a positive and profound influence on the development of China's transportation sector, the enhancement of the city's image, and the improvement of the living and working conditions of its people.
Beijing-Tianjin-Hebei Data Center
Tiantong Enterprise possesses the capability to install 220kV power transmission and transformation equipment, and maintains a service system backed by proprietary intellectual property rights. The company provides installation, operation, commissioning, and maintenance services for complete sets of power equipment and their associated accessories, demonstrating strong competitiveness within the fields of power installation and maintenance.
Tiantong Enterprise was established in 1993 and is headquartered in the Sujiatun District of Shenyang City, covering an area of 135,000 square meters. The company possesses three production bases, fixed assets exceeding 300 million RMB, and over 100 pieces of specialized production equipment, demonstrating substantial strength. Exports account for 20% of its annual sales, with products shipped to numerous countries, including Saudi Arabia, Iraq, Kazakhstan, Uzbekistan, Russia, Indonesia, Vietnam, and Nigeria.
Tiantong Industrial Oil-Immersed Transformers have been selected by numerous leading enterprises in China, including State Grid, PetroChina, Sinopec, Sinohydro, Wanda Group, Vanke, China Resources Land, and Poly Developments. These partnerships reflect our proven product reliability, strict quality standards, and ability to support demanding power distribution projects across utility, industrial, commercial, and infrastructure sectors.
To ensure the safe arrival of the oil immersed transformer at the project site, a specialized export packaging scheme is employed; critical components—such as bushings, radiators, and control devices—undergo treatments to protect against shock, moisture, and corrosion. Transport may be conducted with the unit either oil-filled or under nitrogen protection, and the equipment is secured to a robust steel base fitted with rigid support structures.
We facilitate sea, land, and multimodal transport, offering logistics services under FOB, CIF, and Door-to-Door terms. Furthermore, we provide assistance with export documentation, transport insurance, customs clearance procedures, and on-site installation guidance.
Tiantong provides comprehensive technical support before, during, and after delivery. Dedicated project engineers serve as a single point of contact, ensuring fast communication and efficient problem resolution. Our technical team can provide remote assistance, troubleshooting, maintenance guidance, and on-site engineering support when required, helping customers maximize equipment reliability and operational efficiency throughout the service life of the transformer.
Our factory is in Shenyang City, Liaoning Province.We are a professional factory with more than 30 years experience in the field of High and low Voltage switchgears, Substation ,Transformers,Cable distribution box and various Electrical equipment. Our factory is the excellent supplier of State Grid Corporation od China. *We have more than 30 years to produce different kinds of transformers. *Our factory continue to insist to customers oriented and seek development of technology and science *Our products have high quality and the deep love of our customers *Our products have obtained international certifications such as ISO, CE, IEC certification. *We have a strong supply chain and after-sale service.
We offer OEM/ODM service. Our professional technical and quotation team can provice a satisfied project according to your drawing and parameters.
Our MOQ is 1 piece.
It depends on your product requirement and quantity.
Our core business focuses on the research, development, manufacturing, sales, and maintenance services of power equipment, including transformers, high and low voltage switchgear, and pre-assembled substations. We also provide power engineering construction, technical consulting, and self-operated import/export services, delivering one-stop power equipment solutions and supporting services to domestic and international clients. With years of deep involvement in the power equipment industry, we have accumulated extensive industry expertise.
The company was founded in 1993 and is located in Shenyang City, Liaoning Province. The specific address can be found on the “Contact Us” section of our official website, or you may contact customer service for detailed information.
Our company has obtained ISO 9001 Quality Management System Certification, CE Certification, IEC Certificate, ECM Certification, High-Tech Enterprise Certification, Green Environmental Protection Promotion Enterprise Certification, Environmental Management System Certification, Occupational Health and Safety Management System Certification, Quality Management System Certification, Smart Factory Certification, multiple invention patents, and utility model patents. All operations comply with relevant industry standards in China and target export markets. Certification documents are available for client verification.
Our products/services are primarily categorized into three main groups: New energy power equipment: such as wind and photovoltaic power generation supporting equipment; and services including: smart construction and maintenance, power construction, installation, and maintenance services, and smart construction and maintenance, power construction, installation, and maintenance services. For specific details, please refer to the “Products/Services” section on our official website or contact a sales consultant for a detailed introduction.
Product/service pricing is determined through comprehensive calculation based on product specifications, material standards, service duration, customization requirements, purchase volume, export logistics costs, and other factors. For a specific quote, please contact our sales consultant. After providing your detailed requirements, we will issue a comprehensive quotation proposal. Our pricing is transparent with no hidden fees.
Yes. For clients requiring customization, we can assign a dedicated team to develop a bespoke solution based on your specific needs. This includes: - Electrical equipment functionality, appearance, and specifications - International trade service processes, logistics methods, and customs clearance solutions - Service content, execution procedures, and timelines We ensure all personalized requirements are met.
You may learn more through the following methods: ① View detailed descriptions in the “Products/Services” section of our official website; ② Contact customer service to obtain product manuals; ③ Schedule an in-person demonstration or online presentation through customer service, where professionals will address your questions; ④ Contact customer service to obtain multilingual product materials and export compliance documentation.
The core differences lie in energy efficiency ratings and no-load losses. For industrial parks and scenarios with long-term full-load operation, choose the S20 series for sustained energy savings. For rural grids and scenarios with significant load fluctuations, the S13 series offers better cost-effectiveness. Specific selection should consider on-site conditions, capacity requirements, and installation environments. We provide complimentary selection consultation services.
Our products comply with internationally recognized standards and meet local market access requirements worldwide. We hold certifications such as ISO 9001 and can provide all necessary compliance qualifications and certification documents required by the destination country/region to ensure local customs clearance and usage requirements are met. For specific details, please contact our customer service or sales representatives.
We provide full-process technical support. Nationwide logistics distribution includes wooden crate packaging for impact protection. Export products use packaging compliant with international shipping standards to ensure cargo safety. Installation support includes remote video guidance + printed manuals with one-on-one wiring assistance. For complex projects, customized installation services can be arranged based on project requirements.
The procurement process primarily consists of four steps: ① You submit your procurement requirements (specifications, quantity, delivery time, delivery address); ② We issue a quotation and contract; both parties sign the contract after confirming its accuracy; ③ Payment is made according to the contract terms; ④ We deliver the products/provide the services as specified in the contract and complete the acceptance process.
Yes. For bulk purchasing clients, we offer corresponding volume discounts based on purchase quantity, cooperation duration, and other factors. Specific discount levels can be negotiated with our sales consultants.
We provide full-process foreign trade customs declaration services. The standard procedure is as follows: ① The client provides the Proforma Invoice (PI), packing list, and contract; ② Our company prepares the complete set of documents, including the customs declaration form and commodity inspection form; ③ We handle the declaration; ④ After clearance, we arrange sea/air freight. Supported trade terms include: FOB, CIF, EXW, DAP, etc., which can be flexibly selected based on the client's purchasing preferences.
We support small-batch trial orders and sample requests. ① Sample Scope: Standard accessories and small prototypes are available. ② Delivery Methods: Domestic shipments via standard logistics/courier; international shipments via FedEx/EMS. ③ Cost Details: Samples are free of charge; international shipping fees are borne by the customer.
To reduce the impact of exchange rate fluctuations, it is recommended to adopt multi-currency settlement. Additionally, based on the collaboration cycle, parties may negotiate fixed exchange rate settlement arrangements to minimize the effect of exchange rate volatility on their partnership.
You may submit feedback through the following channels: ① Send an email to tt@ttdl.cn. We will respond within 24 hours. ② Contact your assigned sales representative or customer service agent for assistance with reporting and resolution.
Yes. For customers purchasing our products or utilizing our collaborative services, we offer technical training and operational guidance to help them quickly master product usage and service integration techniques. Should you require technical support afterward, you may contact our technical team at any time. We will respond promptly to resolve any technical issues.
① Email or online customer service inquiries: Response within 24 hours; ② Contact your dedicated sales representative: Receive immediate response and expedited handling; ③ We will rapidly diagnose the cause of the failure and provide solutions through remote communication, operational parameters, and failure symptoms; ④ For on-site service, we will coordinate the optimal technical support plan based on the project location and actual circumstances.
Product returns and exchanges are handled according to the terms of the contract signed by both parties. Customers may submit requests through our after-sales service or sales representatives, providing order details, product information, and relevant explanations. We will review and process the request based on contractual agreements and actual circumstances. Note: Customized products and equipment that have been installed or used generally cannot be returned or exchanged; however, repair and technical support services are available. For products involving export, compliance with international trade, logistics, and customs clearance regulations is also required.
You may contact your assigned sales consultant or customer service representative, provide your order details, and inquire about the real-time progress. For export orders, you can simultaneously track customs clearance and logistics updates. We will also regularly update you on order production, delivery, or service execution to ensure you stay informed.
Specific job openings, qualification requirements, and related details are subject to the information published on the company's official website. Please visit the website for further details.
You may contact customer service online or send an email to tt@ttdl.cn. We will respond within 24 hours.
Our company strictly adheres to national privacy protection laws and regulations, establishing a comprehensive customer information protection system. All customer information is used solely for business coordination and service provision. We will never disclose or sell customer information to third parties without authorization, ensuring the security of customer data. For international trade clients, we additionally comply with privacy protection regulations of the target markets.
We strictly adhere to the laws and regulations of target markets. Our production processes comply with the ISO 14001 Environmental Management System; our products meet the RoHS environmental directive; and overseas projects implement local labor standards, ensuring compliant operations and safeguarding clients from compliance risks in their local business activities.
