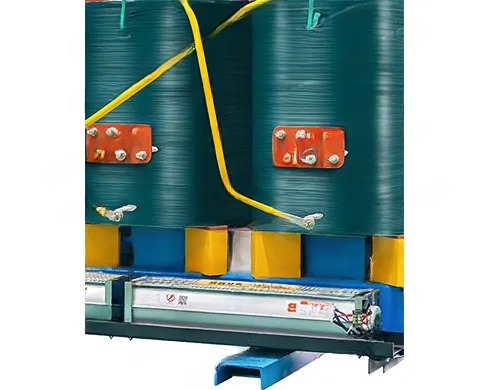

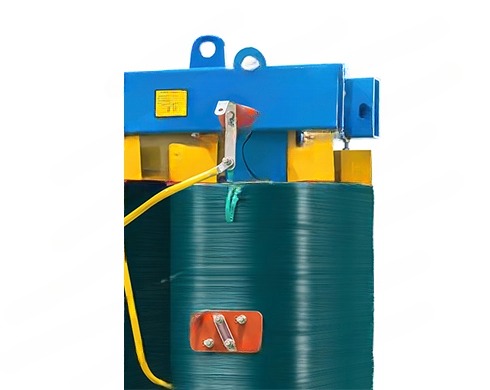

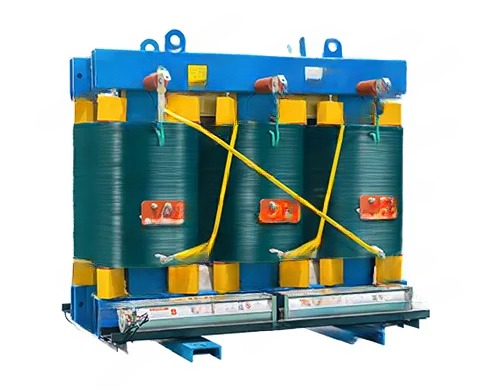

I.Product Introduction
The SCRBH15 amorphous alloy dry-type transformer is a high-efficiency energy-saving dry-type distribution equipment, specially designed for power conversion and power distribution of medium and low-voltage distribution systems. The core adopts amorphous alloy core material, combined with epoxy resin vacuum casting process, it features ultra-low loss, high energy efficiency, fire and explosion proof and low noise, and the energy efficiency index is far higher than the national first-class standard. Mainly used in scenarios with high energy-saving requirements such as urban distribution networks, green buildings, industrial and commercial parks and new energy supporting distribution, it is the core dry-type transformer equipment to realize the green, low-carbon and efficient operation of the distribution system.
II.Technical Specifications
Note: The dimensions, weight, and other specifications provided above are for design and selection purposes only. Final specifications are subject to the product as shipped. Customization options for other models are available upon request.
SCRBH15 Series Amorphous Alloy Dry-Type Transformers
High Voltage (kV): 10
Low Voltage (kV): 0.4
Tap Range: ±2×2.5% or ±5%
Connection Group: Dyn11
| Product Model | Capacity kVA | No-Load Loss W | Load Loss 100℃(B)/120℃(F)/140℃(H) | No-load current% | Short-circuit impedance% | Noise dB | Weight(kg) | Shipping weight(kg) | l×b×h(IP00)(mm) | Housing Dimension s l×b×h(IP00)(mm) | Track gauge |
| SCRBH15 | 200 | 0.2 | 2.37/0.53/2.71 | 0.4 | 4 | 54 | 1370 | 1670 | 1080×760×1241 | 1600×1350×1600 | 660×660 |
| SCRBH15 | 250 | 0.23 | 2.59/2.76/2.96 | 0.4 | 4 | 54 | 1590 | 1890 | 1140×760×1261 | 1600×1350×1600 | 660×660 |
| SCRBH15 | 315 | 0.28 | 3.27/3.47/3.73 | 0.3 | 4 | 56 | 1760 | 2060 | 1180×760×1304 | 1600×1400×1700 | 660×660 |
| SCRBH15 | 400 | 0.31 | 3.75/3.99/4.28 | 0.3 | 4 | 56 | 2060 | 2360 | 1280×760×1369 | 1700×1400×1750 | 660×660 |
| SCRBH15 | 500 | 0.36 | 0.36/4.59/5.23 | 0.3 | 4 | 57 | 2450 | 2850 | 1280×920×1376 | 1800×1450×1750 | 820×820 |
| SCRBH15 | 630 | 0.41 | 5.61/5.96/6.4 | 0.3 | 6 | 58 | 2500 | 2900 | 1340×960×1356 | 1800×1500×1750 | 820×820 |
| SCRBH15 | 800 | 0.48 | 6.55/6.96/7.46 | 0.3 | 6 | 59 | 3090 | 3490 | 1360×920×1641 | 1900×1500×2000 | 820×820 |
| SCRBH15 | 1000 | 0.55 | 7.65/8.13/8.76 | 0.2 | 6 | 59 | 3480 | 3880 | 1420×1170×1671 | 1900×1500×2050 | 1070×1070 |
| SCRBH15 | 1250 | 0.65 | 9.1/9.69/10.3 | 0.2 | 6 | 61 | 4120 | 4520 | 1550×1170×1706 | 1900×1550×2100 | 1070×1070 |
| SCRBH15 | 1600 | 0.76 | 11/11.7/12.5 | 0.2 | 6 | 62 | 5090 | 5590 | 1560×1170×2000 | 2000×1700×2150 | 1070×1070 |
| SCRBH15 | 2000 | 1 | 13.6/14.4/15.5 | 0.2 | 6 | 64 | 6100 | 6600 | 1640×1170×1756 | 2000×1700×2200 | 1070×1070 |
| SCRBH15 | 2500 | 1.2 | 16.1/17.1/18.4 | 0.2 | 6 | 65 | 7100 | 7600 | 1730×1170×1846 | 2100×1750×2250 | 1070×1070 |
III.Product Features
1. Ultra-Low Loss and High Energy Efficiency: The core adopts amorphous alloy core material, whose magnetic permeability is much higher than that of traditional silicon steel sheets, the no-load loss is reduced by more than 70% compared with traditional dry-type transformers, the load loss is optimally designed, the overall energy efficiency is far higher than the national first-class energy efficiency standard, greatly reducing the operating energy consumption of the distribution system and achieving significant energy-saving benefits.
2. Fire and Explosion Proof, Safe and Environmental Protection: Adopting epoxy resin vacuum casting dry-type oil-free structure, eliminating the risk of oil leakage and explosion, the fire rating reaches H class, can be directly installed in indoor, personnel-intensive places and green buildings, no harmful gas release, meeting the requirements of environmental protection and safety protection.
3. Low Noise and Low Excitation: The amorphous alloy core has excellent excitation characteristics, the no-load current is much lower than that of traditional transformers, combined with stepped joint technology and elastic support structure, effectively suppressing electromagnetic noise and mechanical vibration, the operating noise is 5-10dB lower than that of traditional dry-type transformers, adapting to noise-sensitive scenarios such as green buildings and residential areas.
4. Moisture and Corrosion Resistance, Stable Operation: The epoxy resin casting has a dense fully insulated structure, good moisture, mildew and corrosion resistance, can adapt to complex environments such as high humidity, much dust and coastal salt spray; the equipment has excellent dynamic and thermal stability and strong short-circuit resistance, can resist the load fluctuation of the distribution system and ensure long-term stable operation.
5. Maintenance-Free and Long Service Life: The fully sealed insulation structure has no wearing parts, the amorphous alloy core and coil adopt a special fixing method with strong anti-aging ability, no maintenance under normal working conditions, the service life of the equipment can reach more than 30 years, greatly reducing the operation and maintenance cost and improving the comprehensive cost performance of the equipment.
6. Small Volume and Wide Adaptability: The dry-type oil-free structure does not need oil storage tanks and fire isolation zones, the equipment is small in volume and light in weight, convenient for transportation, installation and hoisting, can save the floor area of the distribution room, and adapt to various space-constrained scenarios such as green buildings, industrial and commercial parks and new energy supporting distribution.
IV.Product Application
The SCRBH15 amorphous alloy dry-type transformer is mainly used in scenarios with high requirements for energy saving and environmental protection such as urban intelligent distribution networks, green buildings and ultra-low energy consumption buildings; it is also suitable for distribution fields such as industrial and commercial parks, new energy supporting distribution, data centers, hospitals and schools, as well as supporting distribution systems of new energy projects such as photovoltaic and wind power. It is the preferred dry-type transformer product to realize energy saving and consumption reduction, green and low-carbon operation of the distribution system, and also the core supporting equipment for the energy-saving transformation of the State Grid.
Shenyang Tiantong Power Equipment Co., Ltd. is a comprehensive high-tech enterprise specializing in the core sectors of power equipment, integrating R&D, production, sales, and service. As a State Grid-recommended Grade A supplier, our products have been utilized in major projects with State Grid, China National Petroleum Corporation, China Hydroelectricity, China Railway Group, China Resources, Vanke, and others. We also export to overseas markets in Africa and Southeast Asia, having accumulated extensive experience in cross-border cooperation. Thanks to our reliable quality and attentive service, we have earned consistent recognition and praise from clients both domestically and internationally.
The company has obtained the ISO9001 Quality Management System Certification and ISO14001 Environmental Management System Certification. The products have passed the national mandatory 3C Certification and optional CE Certification, and the company holds a number of utility model patents and appearance design patents.

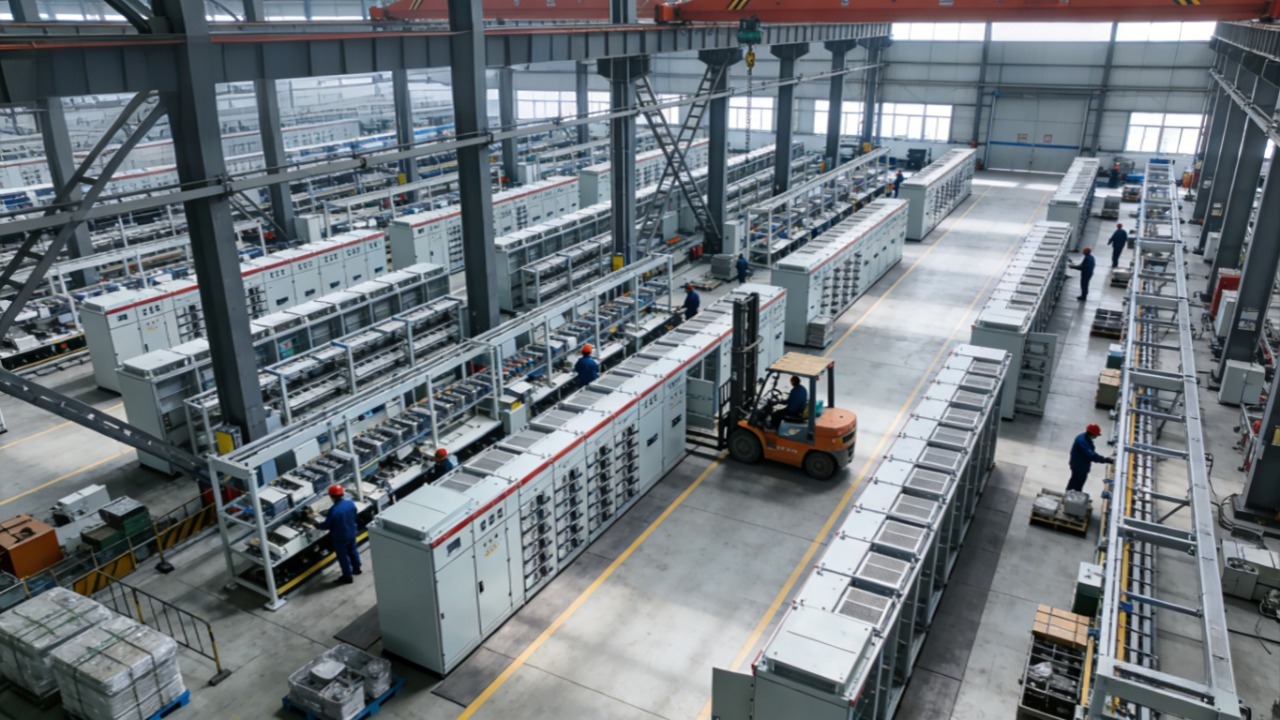

The company operates a modern, standard production facility covering an area of 200 mu (approximately 135,000 square meters), with a building area of 135,000 square meters. Equipped with intelligent production facilities, assembly lines, and testing equipment, the company has established a comprehensive quality control system covering the entire process from raw material procurement and manufacturing to finished product testing. It has evolved from single-product manufacturing to a professional model offering one-stop services encompassing R&D, production, and design implementation. Every stage adheres to high standards and strict requirements to ensure stable and reliable product quality. The product portfolio includes power transformers (oil-immersed and dry-type), high- and low-voltage switchgear, prefabricated substations, transformer accessories, ring main units, and distribution panels. Our products combine stability, practicality, and innovation. All products undergo rigorous testing and comply with industry standards and relevant international specifications.
