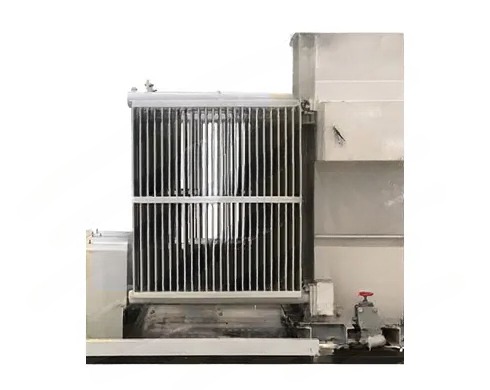

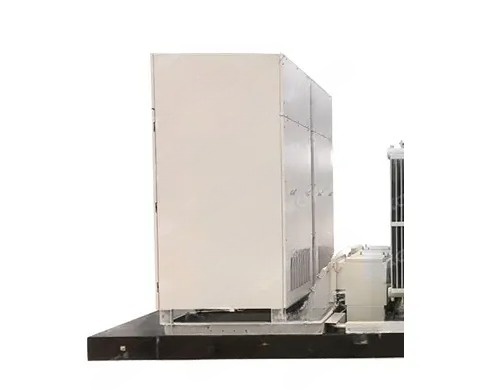

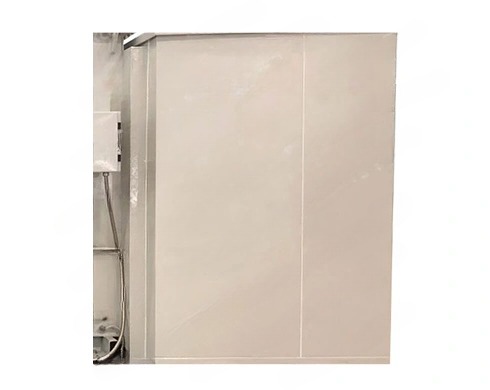

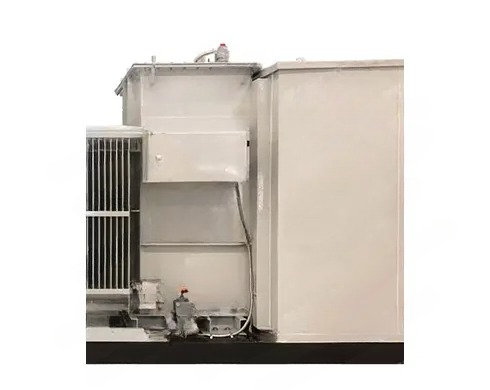

I.Product Introduction
The new energy photovoltaic power generation special box-type substation is a core complete set of substation equipment for photovoltaic power stations, specially designed for power collection, conversion, step-up and grid connection of photovoltaic power generation systems. Integrating photovoltaic special transformer, high and low voltage cabinet, reactive power compensation, intelligent measurement and control, lightning protection and other functions into one, it features photovoltaic adaptability, high efficiency and energy saving, intellectualization and outdoor environment resistance, adapting to the centralized and distributed installation needs of photovoltaic power stations. Mainly used in photovoltaic projects such as photovoltaic ground power stations, distributed photovoltaic, industrial and commercial photovoltaic and roof photovoltaic, it is the key box-type substation equipment to ensure the efficient collection, stable step-up and reliable grid connection of photovoltaic power.
II.Technical Specifications
Note: The dimensions, weight, and other specifications provided above are for design and selection purposes only. Final specifications are subject to the product as shipped. Customization options for other models are available upon request.
The integrated energy storage step-up converter system covers a high-voltage side range of 6kV to 35kV and a low-voltage AC side range of 0.315kV to 0.69kV; it supports various transformer types including American-style, Chinese-style and dry-type transformers, with energy efficiency levels implemented in accordance with design requirements. The DC-side voltage can reach up to 1500VDC, and the maximum single-unit capacity of the integrated energy storage step-up converter is up to 6.8MW. The energy storage system can be connected to the power grid as an independent system to perform peak shaving and valley filling, reactive power compensation and other functions; it can also form a wind-solar-storage hybrid system with new energy generation to smooth the grid-connected power of new energy on the generation side, and be integrated with wind power, photovoltaic and other new energy systems in load centers to form a microgrid system, thereby improving energy utilization efficiency, enhancing power quality, increasing power supply reliability and reflecting environmental friendliness. Through optimized configuration of batteries, inverters, bidirectional converters, wind and solar equipment, we provide engineering consulting, design, system integration, station-level monitoring and other services for energy storage systems, wind-solar-storage systems, energy storage microgrid systems and related projects.
1. Exclusive Optimization for Photovoltaic Working Conditions: Aiming at the characteristics of photovoltaic power generation such as DC component, light fluctuation and low voltage ride through, the photovoltaic special transformer is specially designed to suppress DC bias, improve the equipment's ability to resist voltage fluctuation and low voltage ride through, perfectly adapt to the intermittency and particularity of photovoltaic power generation, and ensure stable power output.
2. Integrated and High-Efficiency Integration: Integrating photovoltaic special step-up transformer, high and low voltage distribution, reactive power compensation, metering protection, intelligent monitoring, lightning protection and grounding and other functions into one, realizing one-stop processing of photovoltaic power from the component end to the grid end, greatly simplifying the distribution system of photovoltaic power stations, saving floor area and construction period, and improving the construction efficiency of power stations.
3. High Efficiency, Energy Saving and Low Loss: The photovoltaic special transformer adopts high-permeability silicon steel sheet or amorphous alloy core, optimizes the magnetic circuit and winding structure, the no-load and load loss are greatly reduced, meeting the new energy energy efficiency standard; at the same time, it is equipped with an intelligent reactive power compensation device to improve the power factor, reduce line loss and realize the energy-saving and efficient operation of the photovoltaic power station.
4. Intelligent and Precise Measurement and Control: Equipped with a photovoltaic special intelligent measurement and control system, which can real-time monitor the output power of photovoltaic arrays, box-type substation operating status, power grid parameters, etc., support maximum power point tracking (MPPT) adaptation, remote fault early warning, data upload and remote operation, realize the intelligent operation and maintenance of photovoltaic power stations, and greatly reduce the labor operation and maintenance cost.
5. Resistance to Outdoor Harsh Environment: The box body adopts a high-strength sealed structure, treated with multiple anti-corrosion, anti-rust and anti-ultraviolet treatments, with IP54 and above protection grade, excellent wind, rain, dust and salt fog resistance, can adapt to various outdoor installation environments such as plateaus, deserts, coastal areas and roofs, and ensure the long-term stable operation of the equipment.
6. Easy Installation and Expansion: The equipment is a factory prefabricated integral structure, the site can be put into operation only by completing foundation pouring and cable wiring, greatly shortening the construction period of photovoltaic projects; the interior adopts a modular design, which can flexibly add distribution units according to the expansion demand of photovoltaic power stations, with good expansion capacity.
IV.Product Application
The new energy photovoltaic power generation special box-type substation is widely used in large-scale photovoltaic projects such as large photovoltaic ground power stations and centralized photovoltaic power stations; it is also suitable for decentralized photovoltaic scenarios such as distributed photovoltaic power stations, industrial and commercial photovoltaic, roof photovoltaic, building-integrated photovoltaic (BIPV), agrivoltaic/fishery-solar hybrid, as well as new energy composite projects such as photovoltaic energy storage hybrid power stations, serving as the core complete set of substation equipment of photovoltaic power stations, and is the key supporting equipment for the photovoltaic power generation industry from power generation to grid connection.
Shenyang Tiantong Power Equipment Co., Ltd. is a comprehensive high-tech enterprise specializing in the core sectors of power equipment, integrating R&D, production, sales, and service. As a State Grid-recommended Grade A supplier, our products have been utilized in major projects with State Grid, China National Petroleum Corporation, China Hydroelectricity, China Railway Group, China Resources, Vanke, and others. We also export to overseas markets in Africa and Southeast Asia, having accumulated extensive experience in cross-border cooperation. Thanks to our reliable quality and attentive service, we have earned consistent recognition and praise from clients both domestically and internationally.
The company has obtained the ISO9001 Quality Management System Certification and ISO14001 Environmental Management System Certification. The products have passed the national mandatory 3C Certification and optional CE Certification, and the company holds a number of utility model patents and appearance design patents.

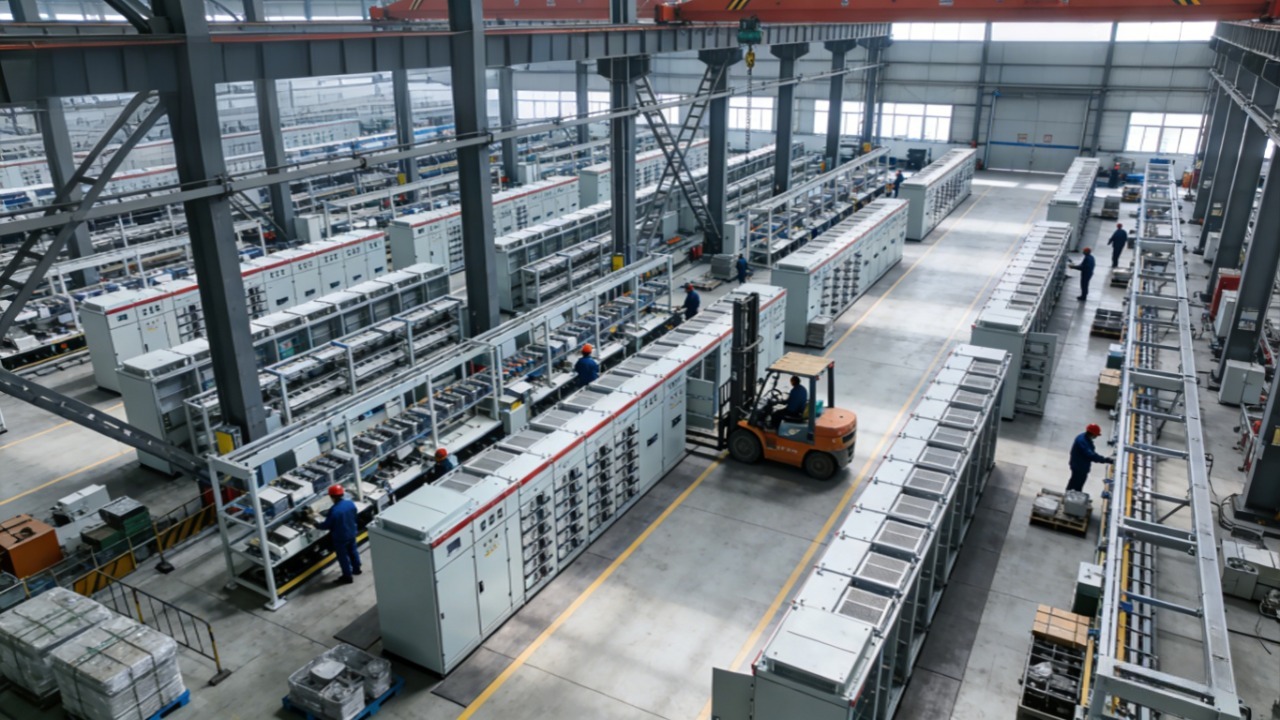

The company operates a modern, standard production facility covering an area of 200 mu (approximately 135,000 square meters), with a building area of 135,000 square meters. Equipped with intelligent production facilities, assembly lines, and testing equipment, the company has established a comprehensive quality control system covering the entire process from raw material procurement and manufacturing to finished product testing. It has evolved from single-product manufacturing to a professional model offering one-stop services encompassing R&D, production, and design implementation. Every stage adheres to high standards and strict requirements to ensure stable and reliable product quality. The product portfolio includes power transformers (oil-immersed and dry-type), high- and low-voltage switchgear, prefabricated substations, transformer accessories, ring main units, and distribution panels. Our products combine stability, practicality, and innovation. All products undergo rigorous testing and comply with industry standards and relevant international specifications.
Provide free technical consultation, scheme design and type selection guidance
Formulate personalized power distribution system solutions according to the on-site working conditions of the project
Follow up the production progress throughout the whole process and feed back the product manufacturing status in a timely manner
Provide on-site installation guidance and technical training to ensure the smooth commissioning of equipment
Conduct regular follow-up visits and provide suggestions for equipment maintenance and upkeep to extend the service life of the equipment
Our factory is in Shenyang City, Liaoning Province.We are a professional factory with more than 30 years experience in the field of High and low Voltage switchgears, Substation ,Transformers,Cable distribution box and various Electrical equipment. Our factory is the excellent supplier of State Grid Corporation od China. *We have more than 30 years to produce different kinds of transformers. *Our factory continue to insist to customers oriented and seek development of technology and science *Our products have high quality and the deep love of our customers *Our products have obtained international certifications such as ISO, CE, IEC certification. *We have a strong supply chain and after-sale service.
We offer OEM/ODM service. Our professional technical and quotation team can provice a satisfied project according to your drawing and parameters.
Our MOQ is 1 piece.
It depends on your product requirement and quantity.
Our core business focuses on the research, development, manufacturing, sales, and maintenance services of power equipment, including transformers, high and low voltage switchgear, and pre-assembled substations. We also provide power engineering construction, technical consulting, and self-operated import/export services, delivering one-stop power equipment solutions and supporting services to domestic and international clients. With years of deep involvement in the power equipment industry, we have accumulated extensive industry expertise.
The company was founded in 1993 and is located in Shenyang City, Liaoning Province. The specific address can be found on the “Contact Us” section of our official website, or you may contact customer service for detailed information.
Our company has obtained ISO 9001 Quality Management System Certification, CE Certification, IEC Certificate, ECM Certification, High-Tech Enterprise Certification, Green Environmental Protection Promotion Enterprise Certification, Environmental Management System Certification, Occupational Health and Safety Management System Certification, Quality Management System Certification, Smart Factory Certification, multiple invention patents, and utility model patents. All operations comply with relevant industry standards in China and target export markets. Certification documents are available for client verification.
Our products/services are primarily categorized into three main groups: New energy power equipment: such as wind and photovoltaic power generation supporting equipment; and services including: smart construction and maintenance, power construction, installation, and maintenance services, and smart construction and maintenance, power construction, installation, and maintenance services. For specific details, please refer to the “Products/Services” section on our official website or contact a sales consultant for a detailed introduction.
Product/service pricing is determined through comprehensive calculation based on product specifications, material standards, service duration, customization requirements, purchase volume, export logistics costs, and other factors. For a specific quote, please contact our sales consultant. After providing your detailed requirements, we will issue a comprehensive quotation proposal. Our pricing is transparent with no hidden fees.
Yes. For clients requiring customization, we can assign a dedicated team to develop a bespoke solution based on your specific needs. This includes: - Electrical equipment functionality, appearance, and specifications - International trade service processes, logistics methods, and customs clearance solutions - Service content, execution procedures, and timelines We ensure all personalized requirements are met.
You may learn more through the following methods: ① View detailed descriptions in the “Products/Services” section of our official website; ② Contact customer service to obtain product manuals; ③ Schedule an in-person demonstration or online presentation through customer service, where professionals will address your questions; ④ Contact customer service to obtain multilingual product materials and export compliance documentation.
The core differences lie in energy efficiency ratings and no-load losses. For industrial parks and scenarios with long-term full-load operation, choose the S20 series for sustained energy savings. For rural grids and scenarios with significant load fluctuations, the S13 series offers better cost-effectiveness. Specific selection should consider on-site conditions, capacity requirements, and installation environments. We provide complimentary selection consultation services.
Our products comply with internationally recognized standards and meet local market access requirements worldwide. We hold certifications such as ISO 9001 and can provide all necessary compliance qualifications and certification documents required by the destination country/region to ensure local customs clearance and usage requirements are met. For specific details, please contact our customer service or sales representatives.
We provide full-process technical support. Nationwide logistics distribution includes wooden crate packaging for impact protection. Export products use packaging compliant with international shipping standards to ensure cargo safety. Installation support includes remote video guidance + printed manuals with one-on-one wiring assistance. For complex projects, customized installation services can be arranged based on project requirements.
The procurement process primarily consists of four steps: ① You submit your procurement requirements (specifications, quantity, delivery time, delivery address); ② We issue a quotation and contract; both parties sign the contract after confirming its accuracy; ③ Payment is made according to the contract terms; ④ We deliver the products/provide the services as specified in the contract and complete the acceptance process.
Yes. For bulk purchasing clients, we offer corresponding volume discounts based on purchase quantity, cooperation duration, and other factors. Specific discount levels can be negotiated with our sales consultants.
We provide full-process foreign trade customs declaration services. The standard procedure is as follows: ① The client provides the Proforma Invoice (PI), packing list, and contract; ② Our company prepares the complete set of documents, including the customs declaration form and commodity inspection form; ③ We handle the declaration; ④ After clearance, we arrange sea/air freight. Supported trade terms include: FOB, CIF, EXW, DAP, etc., which can be flexibly selected based on the client's purchasing preferences.
We support small-batch trial orders and sample requests. ① Sample Scope: Standard accessories and small prototypes are available. ② Delivery Methods: Domestic shipments via standard logistics/courier; international shipments via FedEx/EMS. ③ Cost Details: Samples are free of charge; international shipping fees are borne by the customer.
To reduce the impact of exchange rate fluctuations, it is recommended to adopt multi-currency settlement. Additionally, based on the collaboration cycle, parties may negotiate fixed exchange rate settlement arrangements to minimize the effect of exchange rate volatility on their partnership.
You may submit feedback through the following channels: ① Send an email to tt@ttdl.cn. We will respond within 24 hours. ② Contact your assigned sales representative or customer service agent for assistance with reporting and resolution.
Yes. For customers purchasing our products or utilizing our collaborative services, we offer technical training and operational guidance to help them quickly master product usage and service integration techniques. Should you require technical support afterward, you may contact our technical team at any time. We will respond promptly to resolve any technical issues.
① Email or online customer service inquiries: Response within 24 hours; ② Contact your dedicated sales representative: Receive immediate response and expedited handling; ③ We will rapidly diagnose the cause of the failure and provide solutions through remote communication, operational parameters, and failure symptoms; ④ For on-site service, we will coordinate the optimal technical support plan based on the project location and actual circumstances.
Product returns and exchanges are handled according to the terms of the contract signed by both parties. Customers may submit requests through our after-sales service or sales representatives, providing order details, product information, and relevant explanations. We will review and process the request based on contractual agreements and actual circumstances. Note: Customized products and equipment that have been installed or used generally cannot be returned or exchanged; however, repair and technical support services are available. For products involving export, compliance with international trade, logistics, and customs clearance regulations is also required.
You may contact your assigned sales consultant or customer service representative, provide your order details, and inquire about the real-time progress. For export orders, you can simultaneously track customs clearance and logistics updates. We will also regularly update you on order production, delivery, or service execution to ensure you stay informed.
Specific job openings, qualification requirements, and related details are subject to the information published on the company's official website. Please visit the website for further details.
You may contact customer service online or send an email to tt@ttdl.cn. We will respond within 24 hours.
Our company strictly adheres to national privacy protection laws and regulations, establishing a comprehensive customer information protection system. All customer information is used solely for business coordination and service provision. We will never disclose or sell customer information to third parties without authorization, ensuring the security of customer data. For international trade clients, we additionally comply with privacy protection regulations of the target markets.
We strictly adhere to the laws and regulations of target markets. Our production processes comply with the ISO 14001 Environmental Management System; our products meet the RoHS environmental directive; and overseas projects implement local labor standards, ensuring compliant operations and safeguarding clients from compliance risks in their local business activities.
