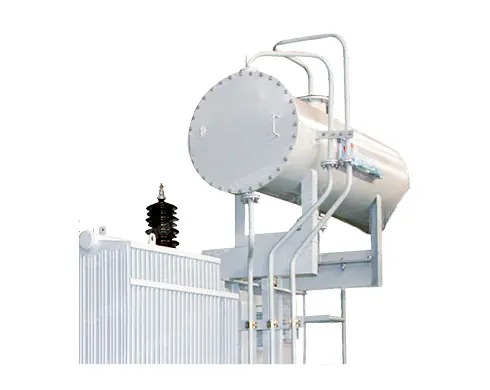

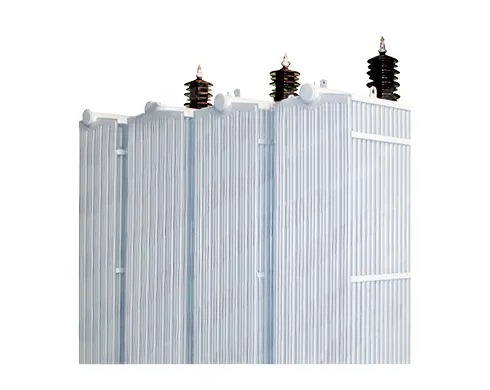

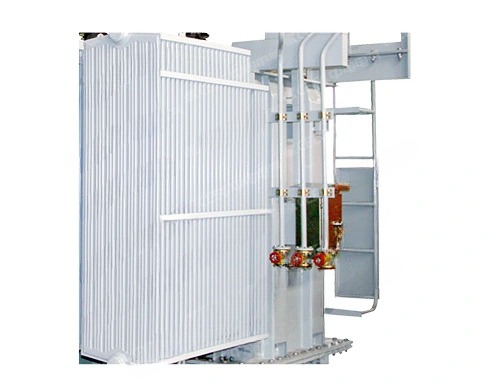

I. Product Introduction
The S Series 35kV power transformers are core equipment developed by our company specifically for power transmission and distribution applications. With key advantages such as low loss, leak-free operation, low noise, and short-circuit resistance, they are widely used in urban power grids, industrial and mining enterprises, and new energy power plants, providing users with stable, efficient, and reliable voltage transformation and power transmission solutions.
Designed and manufactured in strict compliance with national and industry standards, this series undergoes comprehensive quality control throughout the entire process—from raw material selection to production techniques. While ensuring high power transmission efficiency, it minimizes operational and maintenance costs as well as envi
ronmental impact, making it the ideal choice for power equipment at the 35kV voltage level.
II. Product Features:
Low Losses: The core is constructed from high-quality, high-permeability cold-rolled silicon steel sheets. It features multi-stage, fully skewed, fully automated lamination, and the core is bound using an integrated compression process, effectively reducing the transformer’s no-load losses and no-load current.
No Leaks: The tank and oil reservoir undergo positive and negative pressure leak tests to ensure no oil leakage occurs during normal operation. Components are installed using a flange groove structure, and all seals are made of high-quality, one-piece molded parts to prevent oil leakage.
Low Noise: Noise is minimized through a low magnetic flux density design, high-quality high-permeability silicon steel sheets, reliable clamping and bracing measures, and special vibration-damping measures.
Short-Circuit Resistance: The transformer windings use semi-hard copper wire, and the core clamping components meet safety requirements for maximum short-circuit mechanical forces; the windings are assembled as a single unit and compressed as a whole, ensuring assembly precision and guaranteeing short-circuit resistance.
III. Technical Specifications
Note: The dimensions, weight, and other specifications provided above are for design and selection purposes only. Final specifications are subject to the product as shipped. Customization options for other models are available upon request.
S22-3150–31500/35 Non-Excitation Voltage-Regulating Transformer (Energy Efficiency Class 1) | High voltage (kV): 35–38.5 Low voltage (kV): 3.15, 3.3, 6.3, 6.6, 10.5, 11 Tap range: ±5%, ±2×2.5%
| ||||
Rated Capacity (kVA)
| Group Designation | No-load Loss (kW) | Load Loss (kW) (75°C) | No-load Current (%) | Short-circuit Impedance (%) |
3150 | Yd11 | 1.7 | 20.7 | 0.45 | 7 |
4000 | Yd11 | 2 | 24.6 | 0.45 | 7 |
5000 | Yd11 | 2.4 | 28.2 | 0.45 | 7 |
6300 | Yd11 | 2.9 | 31.5 | 0.45 | 8 |
8000 | YNd11 | 4 | 34.6 | 0.35 | 8 |
10000 | YNd11 | 4.8 | 40.8 | 0.35 | 8 |
12500 | YNd11 | 5.5 | 48.4 | 0.3 | 8 |
16000 | YNd11 | 6.7 | 59.2 | 0.3 | 8 |
20000 | YNd11 | 7.9 | 71.6 | 0.3 | 8 |
25000 | YNd11 | 9.4 | 84.6 | 0.25 | 10 |
31500 | YNd11 | 11.1 | 100.8 | 0.25 | 10 |
SZ22-3150–31500/35 On-Load Voltage-Regulating Oil-Immersed Transformer (Energy Efficiency Class 1) | High voltage (kV): 35–38.5 Low voltage (kV): 3.15, 3.3, 6.3, 6.6, 10.5, 11 Tap range: ±5%, ±2×2.5%
| ||||
Rated Capacity (kVA)
| Group Designation | No-load Loss (kW) | Load Loss (kW) (75°C) | No-load Current (%) | Short-circuit Impedance (%) |
3150 | Yd11 | 1.8 | 22.2 | 0.5 | 7 |
4000 | Yd11 | 2.1 | 26.2 | 0.5 | 7 |
5000 | Yd11 | 2.6 | 30.8 | 0.5 | 7 |
6300 | Yd11 | 3.1 | 33 | 0.5 | 7.5 |
8000 | YNd11 | 4.3 | 36.5 | 0.4 | 7.5 |
10000 | YNd11 | 5.1 | 43.2 | 0.4 | 7.5 |
12500 | YNd11 | 6 | 51.1 | 0.35 | 8 |
16000 | YNd11 | 7.2 | 63.3 | 0.35 | 8 |
20000 | YNd11 | 8.5 | 74.4 | 0.3 | 8 |
25000 | YNd11 | 10.1 | 88 | 0.3 | 10 |
31500 | YNd11 | 12 | 104.4 | 0.3 | 10 |
S20-3150–31500/35 Non-Excitation Voltage-Regulating Transformer (Energy Efficiency Class 2) | High Voltage (kV): 35–38.5 Low Voltage (kV): 3.15, 3.3, 6.3, 6.6, 10.5, 11 Tap Settings: ±5%, ±2×2.5% | ||||
Rated Capacity (kVA)
| Group Designation | No-load Loss (kW) | Load Loss (kW) (75°C) | No-load Current (%) | Short-circuit Impedance (%) |
3150 | Yd11 | 2 | 20.7 | 0.45 | 7 |
4000 | Yd11 | 2.3 | 24.6 | 0.45 | 7 |
5000 | Yd11 | 2.8 | 28.2 | 0.45 | 7 |
6300 | Yd11 | 3.4 | 31.5 | 0.45 | 8 |
8000 | YNd11 | 4.7 | 34.6 | 0.35 | 8 |
10000 | YNd11 | 5.7 | 40.8 | 0.35 | 8 |
12500 | YNd11 | 6.5 | 48.4 | 0.3 | 8 |
16000 | YNd11 | 7.9 | 59.2 | 0.3 | 8 |
20000 | YNd11 | 9.4 | 71.6 | 0.3 | 8 |
25000 | YNd11 | 11.1 | 84.6 | 0.25 | 10 |
31500 | YNd11 | 13.1 | 100.8 | 0.25 | 10 |
S18-3150–31500/35 Non-Excitation Voltage-Regulating Transformer (Energy Efficiency Class 3)
| High voltage (kV): 35–38.5 Low voltage (kV): 3.15, 3.3, 6.3, 6.6, 10.5, 11 Tap range: ±5%, ±2×2.5%
| ||||
Rated Capacity (kVA) | Group Designation | No-load Loss (kW) | Load Loss (kW) (75°C) | No-load Current (%) | Short-circuit Impedance (%) |
3150 | Yd11 | 2.4 | 21.9 | 0.45 | 7 |
4000 | Yd11 | 2.9 | 25.9 | 0.45 | 7 |
5000 | Yd11 | 3.5 | 29.7 | 0.45 | 7 |
6300 | Yd11 | 4.2 | 33.3 | 0.45 | 8 |
8000 | Yd11 | 5.8 | 36.5 | 0.35 | 8 |
10000 | Yd11 | 7 | 43 | 0.35 | 8 |
12500 | YNd11 | 8 | 51.1 | 0.3 | 8 |
16000 | YNd11 | 9.7 | 62.5 | 0.3 | 8 |
20000 | YNd11 | 11.5 | 75.5 | 0.3 | 8 |
25000 | YNd11 | 13.6 | 89.3 | 0.25 | 10 |
31500 | YNd11 | 16.2 | 106.4 | 0.25 | 10 |
SZ18-3150–31500/35 On-Load Voltage-Regulating Oil-Immersed Transformer (Energy Efficiency Class 3)
| High voltage (kV): 35–38.5 Low voltage (kV): 3.15, 3.3, 3.6, 3.6, 6, 10.5, 11 Tap range: ±5%, ±2 × 2.5%
| ||||
Rated Capacity (kVA) | Group Designation | No-load Loss (kW) | Load Loss (kW) (75°C) | No-load Current (%) | Short-circuit Impedance (%) |
3150 | Yd11 | 2.6 | 23.5 | 0.5 | 7 |
4000 | Yd11 | 3.1 | 27.6 | 0.5 | 7 |
5000 | Yd11 | 3.7 | 32.5 | 0.5 | 7 |
6300 | Yd11 | 4.5 | 34.9 | 0.5 | 7.5 |
8000 | YNd11 | 6.3 | 38.6 | 0.4 | 7.5 |
10000 | YNd11 | 7.4 | 45.6 | 0.4 | 7.5 |
12500 | YNd11 | 8.7 | 54 | 0.35 | 8 |
16000 | YNd11 | 10.5 | 66.8 | 0.35 | 8 |
20000 | YNd11 | 12.4 | 78.6 | 0.3 | 8 |
25000 | YNd11 | 14.6 | 92.9 | 0.3 | 10 |
31500 | YNd11 | 17.4 | 110.2 | 0.3 | 10 |
SZ11-2000–40000/35 On-Load Tap-Changing Oil-Immersed Transformer
| High voltage (kV): 35–38.5 Low voltage (kV): 3.15, 3.3, 6.3, 6.6, 10.5, 11.0 Tap range: ±3 × 2.5%
| |||||||||
Rated Capacity (kVA) | Connection Group Designation | No-Load Loss (kW) | Load Loss (kW) (75°C) | No-Load Current (%) | Short-Circuit Impedance (%) | Length (mm) | Width (mm) | Height (mm) | Total Weight (kg) | Track Gauge (mm) |
2000 | Yd11 | 2.3 | 19.2 | 0.5 | 6.5 | 3160 | 2170 | 2550 | 6900 | 1070/1070 |
2500 | Yd11 | 2.72 | 20.6 | 0.5 | 6.5 | 3250 | 2740 | 2740 | 7500 | 1070/1070 |
3150 | Yd11 | 3.23 | 24.7 | 0.5 | 7 | 3360 | 2990 | 2850 | 8640 | 1070/1070 |
4000 | Yd11 | 3.87 | 29.1 | 0.5 | 7 | 3540 | 2940 | 2950 | 11200 | 1070/1070 |
5000 | Yd11 | 4.64 | 34.2 | 0.5 | 7 | 3800 | 3400 | 3250 | 11495 | 1070/1070 |
6300 | Yd11 | 5.63 | 36.7 | 0.5 | 7.5 | 4150 | 3420 | 3750 | 13460 | 1070/1070 |
8000 | YNd11 | 7.87 | 40.6 | 0.4 | 7.5 | 4350 | 3450 | 3790 | 16305 | 1475/1475 |
10000 | YNd11 | 9.28 | 48 | 0.4 | 8 | 4400 | 3520 | 3810 | 18090 | 1475/1475 |
12500 | YNd11 | 10.9 | 56.8 | 0.35 | 8 | 4450 | 3670 | 3850 | 23400 | 1475/1475 |
16000 | YNd11 | 13.1 | 70.3 | 0.35 | 8 | 4480 | 4080 | 3900 | 24300 | 1475/1475 |
20000 | YNd11 | 15.6 | 82.7 | 0.3 | 8 | 4500 | 4200 | 3950 | 29540 | 1475/1475 |
25000 | YNd11 | 18.3 | 97.8 | 0.3 | 8.0 10.0 | 4990 | 4320 | 4080 | 36400 | 2040/1475 |
31500 | YNd11 | 21.8 | 116 | 0.3 | 8.0 10.0 | 5220 | 4590 | 4140 | 44500 | 2040/1475 |
40000 | YNd11 | 26.2 | 139 | 0.3 | 8.0 10.0 | 5430 | 4540 | 4270 | 53300 | 2040/1475 |
S11-50–75,000/35 Non-Excitation Voltage-Regulating Transformer
| High voltage (kV): 35–38.5 Tap range: ±5% ±2×2.5%
| ||||||||||
Rated Capacity (kVA)
| Low Voltage (kV) | Connection Group Designation | No-Load Losses (kW) | Load Losses (kW) (75°C) | No-Load Current (%) | Short-Circuit Impedance (%) | Length (mm) | Width (mm) | Height (mm) | Total Weight (kg) | Track Gauge (mm) |
50 | 0.4 | Dyn11 Yyn0 | 0.16 | 1.2 | 1.3 | 6.5 | 2300 | 950 | 2190 | 1285 | 660/660 |
100 | 0.4 | Dyn11 Yyn0 | 0.23 | 2.01 | 1.1 | 6.5 | 1175 | 1000 | 1850 | 1015 | 660/660 |
125 | 0.4 | Dyn11 Yyn0 | 0.27 | 2.37 | 1.1 | 6.5 | 1190 | 1120 | 1870 | 1260 | 660/660 |
160 | 0.4 | Dyn11 Yyn0 | 0.28 | 2.82 | 1 | 6.5 | 1220 | 1140 | 1900 | 1390 | 660/660 |
200 | 0.4 | Dyn11 Yyn0 | 0.34 | 3.32 | 1 | 6.5 | 1240 | 1130 | 1955 | 1545 | 660/660 |
250 | 0.4 | Dyn11 Yyn0 | 0.4 | 3.95 | 0.95 | 6.5 | 1720 | 1140 | 1980 | 1635 | 660/660 |
315 | 0.4 | Dyn11 Yyn0 | 0.48 | 4.75 | 0.95 | 6.5 | 1820 | 1240 | 1950 | 1700 | 660/660 |
400 | 0.4 | Dyn11 Yyn0 | 0.58 | 5.74 | 0.85 | 6.5 | 1840 | 800 | 2400 | 2075 | 820/820 |
500 | 0.4 | Dyn11 Yyn0 | 0.68 | 6.91 | 0.85 | 6.5 | 1960 | 830 | 2430 | 2450 | 820/820 |
630 | 0.4 | Dyn11 Yyn0 | 0.83 | 7.86 | 0.65 | 6.5 | 2050 | 1750 | 2275 | 3140 | 820/820 |
800 | 0.4 | Dyn11 Yyn0 | 0.98 | 9.4 | 0.65 | 6.5 | 2165 | 1430 | 2235 | 3525 | 820/820 |
1000 | 0.4 | Dyn11 Yyn0 | 1.15 | 11.5 | 0.65 | 6.5 | 2270 | 1125 | 2500 | 4970 | 820/820 |
1250 | 0.4 | Dyn11 Yyn0 | 1.4 | 13.9 | 0.6 | 6.5 | 2550 | 1146 | 2470 | 4910 | 820/820 |
1600 | 0.4 | Dyn11 Yyn0 | 1.69 | 16.6 | 0.6 | 6.5 | 2570 | 1240 | 2630 | 5730 | 820/820 |
2000 | 0.4 | Dyn11 Yyn0 | 1.99 | 19.7 | 0.55 | 6.5 | / | / | / | / | 820/820 |
2500 | 0.4 | Dyn11 Yyn0 | 2.36 | 23.2 | 0.55 | 6.5 | / | / | / | / | 820/820 |
630 | 3.15 3.3 6.3 6.6 10.5 11 | Yd11 | 0.83 | 7.86 | 0.65 | 6.5 | / | / | / | / | 820/820 |
800 | 3.15 3.3 6.3 6.6 10.5 11 | Yd11 | 0.98 | 9.4 | 0.65 | 6.5 | 2240 | 900 | 2490 | 3780 | 820/820 |
1000 | 3.15 3.3 6.3 6.6 10.5 11 | Yd11 | 1.15 | 11.5 | 0.65 | 6.5 | 2270 | 1125 | 2500 | 3980 | 820/820 |
1250 | 3.15 3.3 6.3 6.6 10.5 11 | Yd11 | 1.4 | 13.9 | 0.55 | 6.5 | 2550 | 1200 | 2560 | 5260 | 820/820 |
1600 | 3.15 3.3 6.3 6.6 10.5 11 | Yd11 | 1.69 | 16.6 | 0.45 | 6.5 | 2540 | 1240 | 2670 | 5530 | 1070/1070 |
2000 | 3.15 3.3 6.3 6.6 10.5 11 | Yd11 | 2.17 | 18.3 | 0.45 | 6.5 | 2060 | 1550 | 2850 | 6390 | 1070/1070 |
2500 | 3.15 3.3 6.3 6.6 10.5 11 | Yd11 | 2.56 | 19.6 | 0.45 | 6.5 | 2560 | 2450 | 2860 | 7690 | 1070/1070 |
3150 | 3.15 3.3 6.3 6.6 10.5 11 | Yd11 | 3.04 | 23 | 0.45 | 7 | 2740 | 2830 | 2870 | 8245 | 1070/1070 |
4000 | 3.15 3.3 6.3 6.6 10.5 11 | Yd11 | 3.61 | 27.3 | 0.45 | 7 | 2930 | 2970 | 2930 | 8860 | 1070/1070 |
5000 | 3.15 3.3 6.3 6.6 10.5 11 | Yd11 | 4.32 | 31.3 | 0.45 | 7 | 2950 | 2790 | 2895 | 10375 | 1070/1070 |
6300 | 3.15 3.3 6.3 6.6 10.5 11 | Yd11 | 5.24 | 35 | 0.45 | 8 | 3110 | 2890 | 3360 | 14040 | 1475/1475 |
8000 | 3.15 3.3 6.3 6.6 10.5 11 | YNd11 | 7.2 | 38.4 | 0.35 | 8 | 3500 | 4150 | 3400 | 15865 | 1475/1475 |
10000 | 3.15 3.3 6.3 6.6 10.5 11 | YNd11 | 8.7 | 45.3 | 0.35 | 8 | 3600 | 3600 | 3500 | 17750 | 1475/1475 |
12500 | 3.15 3.3 6.3 6.6 10.5 11 | YNd11 | 10 | 53.8 | 0.3 | 8 | 4285 | 3720 | 3690 | 22450 | 1475/1475 |
16000 | 3.15 3.3 6.3 6.6 10.5 11 | YNd11 | 12.1 | 65.8 | 0.3 | 8 | 4350 | 3910 | 4375 | 30050 | 1475/1475 |
20000 | 3.15 3.3 6.3 6.6 10.5 11 | YNd11 | 14.4 | 79.5 | 0.3 | 8 | 5240 | 4100 | 4050 | 30900 | 2040/1475 |
25000 | 3.15 3.3 6.3 6.6 10.5 11 | YNd11 | 17 | 94 | 0.25 | 8.0 10.0 | 4682 | 3500 | 4255 | 31725 | 2040/1475 |
31500 | 3.15 3.3 6.3 6.6 10.5 11 | YNd11 | 20.2 | 112 | 0.25 | 8.0 10.0 | 5800 | 4800 | 4400 | 42000 | 2040/1475 |
40000 | 3.15 3.3 6.3 6.6 10.5 11 | YNd11 | 25.9 | 150 | 0.25 | 8.0 10.0 | 4830 | 4940 | 4470 | 49250 | 2040/1475 |
50000 | 3.15 3.3 6.3 6.6 10.5 11 | YNd11 | 29.4 | 210 | 0.25 | 8.0 10.0 | 4960 | 5070 | 4510 | 56800 | 2040/1475 |
63000 | 3.15 3.3 6.3 6.6 10.5 11 | YNd11 | 31.2 | 250 | 0.2 | 8.0 10.0 | 4990 | 5110 | 4740 | 60550 | 2040/1475 |
75000 | 3.15 3.3 6.3 6.6 10.5 11 | YNd11 | 33.4 | 300 | 0.2 | 8.0 10.0 | 5010 | 5250 | 4880 | 66500 | 2040/1475 |
IV. Company Profile
Our company is a high-tech enterprise specializing in the research, development, production, and sales of power equipment. With years of experience in the transformer industry, we possess a comprehensive R&D system and robust manufacturing capabilities. Guided by the product philosophy of “safety, efficiency, and reliability,” we provide high-quality power transformers and integrated solutions to customers worldwide. We have served major projects for clients such as State Grid, PetroChina, China Hydroelectricity, China Railway, China Resources, and Vanke.

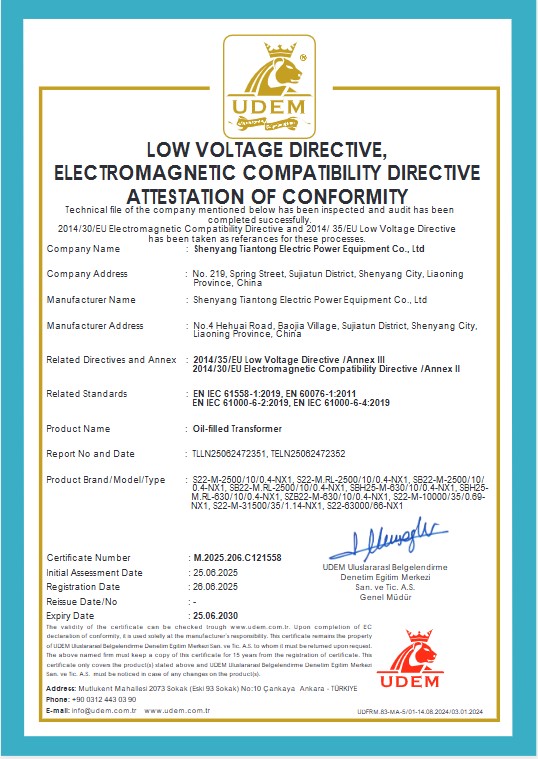

V. Honors and Certifications
Our products have been tested and certified by authoritative national agencies. We have obtained ISO 9001 Quality Management System certification and ISO 14001 Environmental Management System certification, as well as numerous industry honors and patented technologies. Our products meet the technical standards of the State Grid and various industrial users, and have received international CE certification. Their quality and performance are widely recognized.

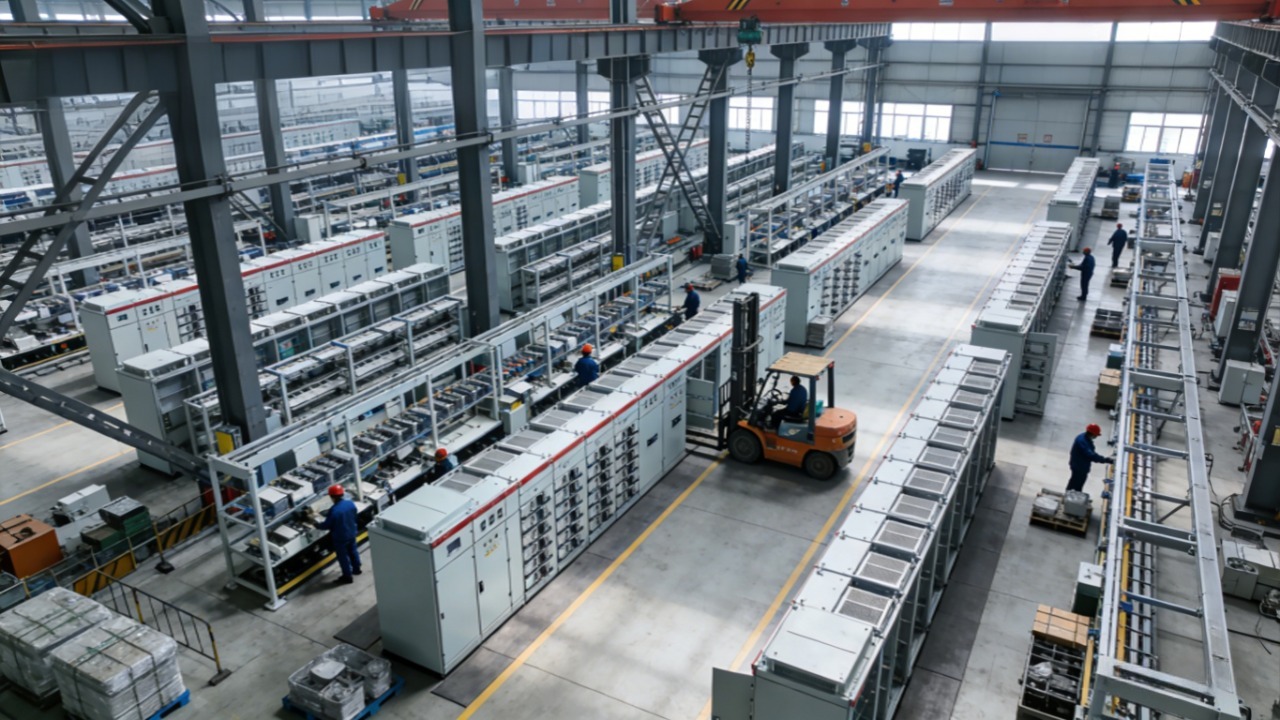

VI. Manufacturing Capabilities
